222121

Active

Amphenol RF

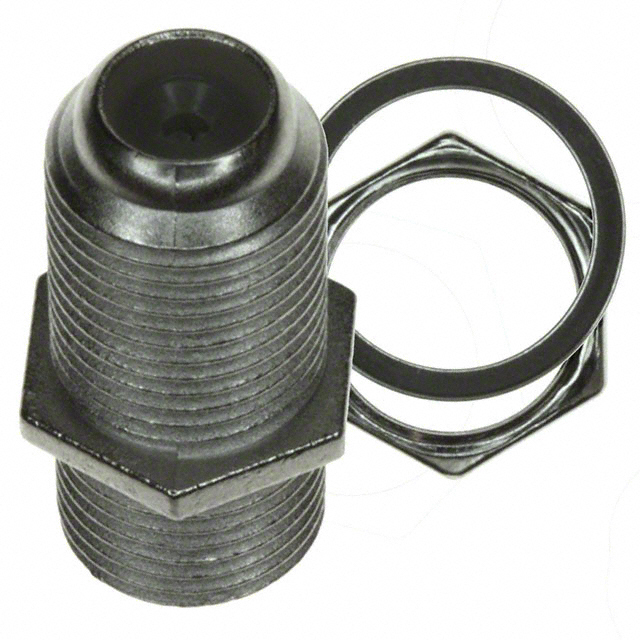

CONN ADAPT JACK-JACK F 75 OHM

Deep-Dive with AI

Search across all available documentation for this part.

222121

Active

Amphenol RF

CONN ADAPT JACK-JACK F 75 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	222121

Adapter Series	F to F
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Tin
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	F Jack, Female Socket
Convert To (Adapter End)	Female Socket, F Jack
Dielectric Material	Polypropylene (PP)
Frequency - Max [Max]	2 GHz
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Style	Straight

2221 Series

Part	Housing Color	Center Contact Material	Frequency - Max [Max]	Body Finish	Number of Ports	Includes	Cable Group	Contact Termination	Shield Termination	Connector Style	Body Material	Dielectric Material	Connector Type	Impedance	Mating Cycles	Mounting Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Style	Convert From (Adapter End)	Mounting Feature	Adapter Series	Convert To (Adapter End)	Adapter Type	Conversion Type	Cable Group [Min]	Cable Group [Max]
Amphenol RF 222123	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	143 212 54 6A 89248 9290 Belden 1152A RG-6	Solder	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222183	Silver	Brass	2 GHz	Tin-Lead	1	1 Connector 1 Contact 1 Ferrule	RG-316 Double Braid	Solder	Crimp	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Tin
Amphenol RF 222171	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	Belden 1695A RG-6 Plenum	Crimp	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222121		Brass	2 GHz	Nickel		1 Connector 1 Lockwasher 1 Nut					Zinc Die Cast	Polypropylene (PP)		75 Ohms			Tin	85 °C	-55 °C	Female to Female	Straight	F Jack Female Socket	Bulkhead	F to F	F Jack Female Socket	Jack to Jack	Same Series
Amphenol RF 222115	Silver	Brass	2 GHz	Tin-Lead	1	Connector Contact Insulator	RG-405 Semi Rigid	Solder	Solder	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	50 Ohms	500	Free Hanging (In-Line)	Tin											0.085 in	0.086 in
Amphenol RF 222119	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Crimp	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222124	Silver		2 GHz	Nickel	1		140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Crimp	Crimp	F Type	Brass		Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)
Amphenol RF 222131	Silver	Brass	2 GHz	Nickel	1			Solder	Solder	F Type	Brass	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	75 Ohms	500	Through Hole Right Angle	Tin
Amphenol RF 222196	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 End Cap 1 Ferrule	Belden 9258 LMR-240	Solder	Crimp	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line) Right Angle	Gold
Amphenol RF 222114	Silver	Brass	1 GHz	Tin	1		179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Solder	Crimp	F Type	Brass	Polypropylene (PP)	Female Socket Jack	75 Ohms	500		Tin						Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.58
		10	$ 1.38
		30	$ 1.32
		50	$ 1.29
		100	$ 1.23
		250	$ 1.11
		500	$ 1.02
		1000	$ 0.88
		2500	$ 0.82

Description

General part information

2221 Series

Adapter Coaxial Connector F Jack, Female Socket To F Jack, Female Socket 75 Ohms

Documents

Technical documentation and resources

No documents available
