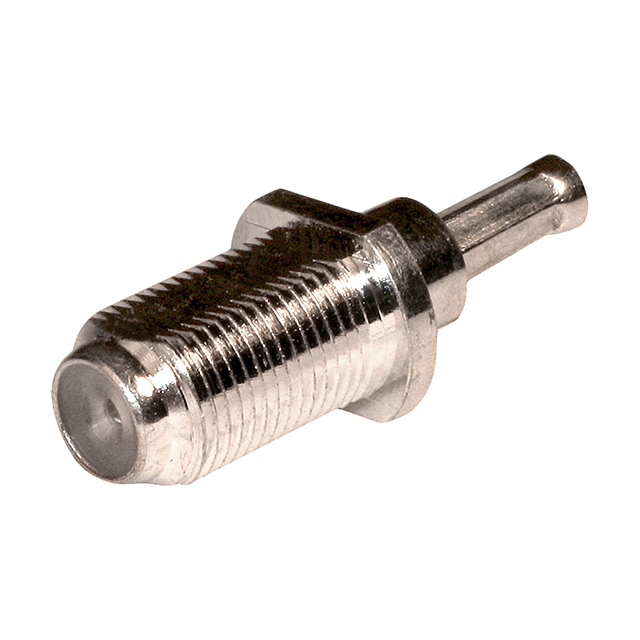

222114

Active

Amphenol RF

CONN F JACK STR 75OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

222114

Active

Amphenol RF

CONN F JACK STR 75OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	222114

Body Finish	Tin
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass
Center Contact Plating	Tin
Connector Style	F Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Crimp

2221 Series

Part	Housing Color	Center Contact Material	Frequency - Max [Max]	Body Finish	Number of Ports	Includes	Cable Group	Contact Termination	Shield Termination	Connector Style	Body Material	Dielectric Material	Connector Type	Impedance	Mating Cycles	Mounting Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Style	Convert From (Adapter End)	Mounting Feature	Adapter Series	Convert To (Adapter End)	Adapter Type	Conversion Type	Cable Group [Min]	Cable Group [Max]
Amphenol RF 222123	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	143 212 54 6A 89248 9290 Belden 1152A RG-6	Solder	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222183	Silver	Brass	2 GHz	Tin-Lead	1	1 Connector 1 Contact 1 Ferrule	RG-316 Double Braid	Solder	Crimp	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Tin
Amphenol RF 222171	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	Belden 1695A RG-6 Plenum	Crimp	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222121		Brass	2 GHz	Nickel		1 Connector 1 Lockwasher 1 Nut					Zinc Die Cast	Polypropylene (PP)		75 Ohms			Tin	85 °C	-55 °C	Female to Female	Straight	F Jack Female Socket	Bulkhead	F to F	F Jack Female Socket	Jack to Jack	Same Series
Amphenol RF 222115	Silver	Brass	2 GHz	Tin-Lead	1	Connector Contact Insulator	RG-405 Semi Rigid	Solder	Solder	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	50 Ohms	500	Free Hanging (In-Line)	Tin											0.085 in	0.086 in
Amphenol RF 222119	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Crimp	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222124	Silver		2 GHz	Nickel	1		140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Crimp	Crimp	F Type	Brass		Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)
Amphenol RF 222131	Silver	Brass	2 GHz	Nickel	1			Solder	Solder	F Type	Brass	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	75 Ohms	500	Through Hole Right Angle	Tin
Amphenol RF 222196	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 End Cap 1 Ferrule	Belden 9258 LMR-240	Solder	Crimp	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line) Right Angle	Gold
Amphenol RF 222114	Silver	Brass	1 GHz	Tin	1		179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Solder	Crimp	F Type	Brass	Polypropylene (PP)	Female Socket Jack	75 Ohms	500		Tin						Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 4.12

Description

General part information

2221 Series

F Type Connector Jack, Female Socket 75 Ohms Panel Mount Solder
