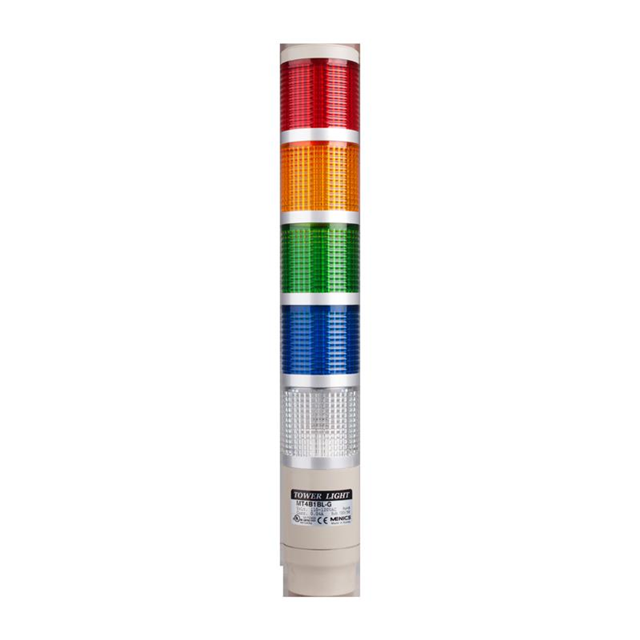

MT4B5AL

Active

Menics

COMPLETE UNIT MULT STEADY 5STACK

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT MULT STEADY 5STACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MT4B5AL	- Series

Features	-	Pushbutton Control, Selector Control
Function - Lighting	Steady	Steady, Flashing
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP65 - Dust Tight, Water Resistant, IP54 - Dust Protected, Water Resistant
Lamp Type	Incandescent	Incandescent
Light Color	Yellow, Red, Clear, Green, Blue	Green, Red, Yellow, Blue, Clear
Number of Stacks	5	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Wire Leads	Cable with Connector, Wire Leads, Connector
Type	Complete Unit	Complete Unit, Optical Element
Voltage - Supply	24 VAC	12 - 220 VAC/DC
Voltage - Supply	-	240 VAC
Voltage - Supply	-	90 VAC

COMPLETE UNIT GRN LED STEADY

Part	Light Color	Operating Temperature [Min]	Operating Temperature [Max]	Function - Lighting	Type	Number of Stacks	Voltage - Supply	Features	Termination Style	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Lamp Type
Menics ATEP-G	Green	-15 °C	40 °C	Steady	Complete Unit	1	110 VAC/DC	Pushbutton Control	Cable with Connector
Menics PTM-A-102-RYG-B	Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	1	24 VAC		Wire Leads	IP65 - Dust Tight, Water Resistant
Menics PTM-02-RBG	Blue, Green, Red	-15 °C	40 °C	Flashing, Steady	Optical Element	1			Connector	IP65 - Dust Tight, Water Resistant
Menics ATEP-R	Red	-15 °C	40 °C	Flashing	Complete Unit	1	110 VAC/DC	Pushbutton Control	Cable with Connector
Menics PTM-A-1FF-RYG-B	Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	1			Wire Leads	IP65 - Dust Tight, Water Resistant	240 VAC	90 VAC
Menics MT4B5AL	Blue, Clear, Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	5	24 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent
Menics MT4B2AL	Green, Red	-15 °C	40 °C	Steady	Complete Unit	2	24 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent
Menics ATES-G	Green	-15 °C	40 °C	Steady	Complete Unit	1	110 VAC/DC	Selector Control	Cable with Connector
Menics PTM-02-RYG	Green, Red, Yellow	-15 °C	40 °C	Flashing, Steady	Optical Element	1			Connector	IP65 - Dust Tight, Water Resistant
Menics MT5C1CL	Red	-15 °C	40 °C	Flashing, Steady	Complete Unit	1	220 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 60.29

General part information

Stack Light Complete Unit Blue, Clear, Green, Red, Yellow Incandescent Wire Leads
