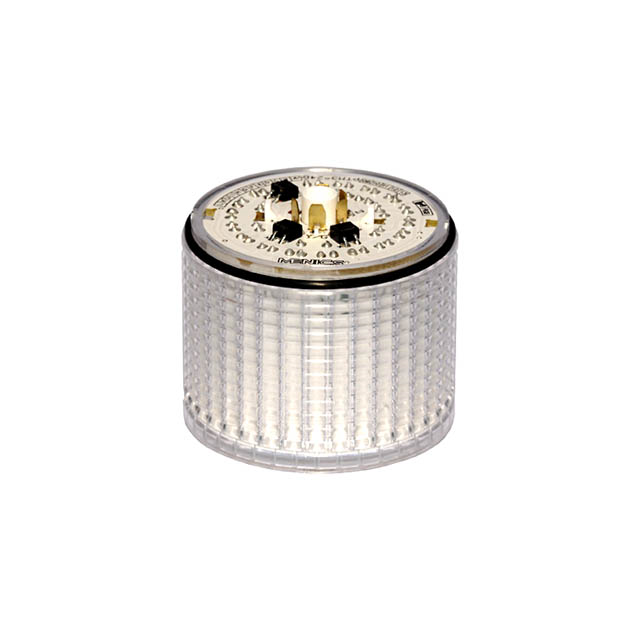

PTM-02-RYG

Active

Menics

OPTICAL ELEMENT GR/R/YL FLASH

Search across all available documentation for this part.

Active

Menics

OPTICAL ELEMENT GR/R/YL FLASH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 64.95

General part information

Stack Light Optical Element Green, Red, Yellow LED Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PTM-02-RYG	- Series

Features	-	Pushbutton Control, Selector Control
Function - Lighting	Steady, Flashing	Steady, Flashing
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant, IP54 - Dust Protected, Water Resistant
Lamp Type	-	Incandescent
Light Color	Red, Green, Yellow	Green, Red, Yellow, Blue, Clear
Number of Stacks	1	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Connector	Cable with Connector, Wire Leads, Connector
Type	Optical Element	Complete Unit, Optical Element
Voltage - Supply	-	12 - 220 VAC/DC
Voltage - Supply	-	240 VAC
Voltage - Supply	-	90 VAC

COMPLETE UNIT GRN LED STEADY

Part	Light Color	Operating Temperature [Min]	Operating Temperature [Max]	Function - Lighting	Type	Number of Stacks	Voltage - Supply	Features	Termination Style	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Lamp Type
Menics ATEP-G	Green	-15 °C	40 °C	Steady	Complete Unit	1	110 VAC/DC	Pushbutton Control	Cable with Connector
Menics PTM-A-102-RYG-B	Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	1	24 VAC		Wire Leads	IP65 - Dust Tight, Water Resistant
Menics PTM-02-RBG	Blue, Green, Red	-15 °C	40 °C	Flashing, Steady	Optical Element	1			Connector	IP65 - Dust Tight, Water Resistant
Menics ATEP-R	Red	-15 °C	40 °C	Flashing	Complete Unit	1	110 VAC/DC	Pushbutton Control	Cable with Connector
Menics PTM-A-1FF-RYG-B	Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	1			Wire Leads	IP65 - Dust Tight, Water Resistant	240 VAC	90 VAC
Menics MT4B5AL	Blue, Clear, Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	5	24 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent
Menics MT4B2AL	Green, Red	-15 °C	40 °C	Steady	Complete Unit	2	24 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent
Menics ATES-G	Green	-15 °C	40 °C	Steady	Complete Unit	1	110 VAC/DC	Selector Control	Cable with Connector
Menics PTM-02-RYG	Green, Red, Yellow	-15 °C	40 °C	Flashing, Steady	Optical Element	1			Connector	IP65 - Dust Tight, Water Resistant
Menics MT5C1CL	Red	-15 °C	40 °C	Flashing, Steady	Complete Unit	1	220 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent
