ATEP-R

Active

Menics

COMPLETE UNIT RED LED FLASHING

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT RED LED FLASHING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 128.00

General part information

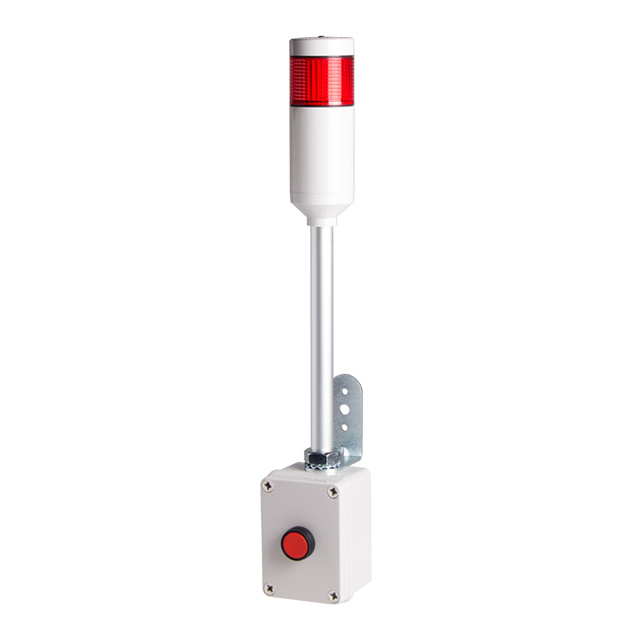

Stack Light Complete Unit Red LED Pushbutton Control Cable with Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ATEP-R	- Series

Features	Pushbutton Control	Pushbutton Control, Selector Control
Function - Lighting	Flashing	Steady, Flashing
Ingress Protection	-	IP65 - Dust Tight, Water Resistant, IP54 - Dust Protected, Water Resistant
Lamp Type	-	Incandescent
Light Color	Red	Green, Red, Yellow, Blue, Clear
Number of Stacks	1	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Cable with Connector	Cable with Connector, Wire Leads, Connector
Type	Complete Unit	Complete Unit, Optical Element
Voltage - Supply	110 VAC/DC	12 - 220 VAC/DC
Voltage - Supply	-	240 VAC
Voltage - Supply	-	90 VAC

COMPLETE UNIT GRN LED STEADY

Part	Light Color	Operating Temperature [Min]	Operating Temperature [Max]	Function - Lighting	Type	Number of Stacks	Voltage - Supply	Features	Termination Style	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Lamp Type
Menics ATEP-G	Green	-15 °C	40 °C	Steady	Complete Unit	1	110 VAC/DC	Pushbutton Control	Cable with Connector
Menics PTM-A-102-RYG-B	Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	1	24 VAC		Wire Leads	IP65 - Dust Tight, Water Resistant
Menics PTM-02-RBG	Blue, Green, Red	-15 °C	40 °C	Flashing, Steady	Optical Element	1			Connector	IP65 - Dust Tight, Water Resistant
Menics ATEP-R	Red	-15 °C	40 °C	Flashing	Complete Unit	1	110 VAC/DC	Pushbutton Control	Cable with Connector
Menics PTM-A-1FF-RYG-B	Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	1			Wire Leads	IP65 - Dust Tight, Water Resistant	240 VAC	90 VAC
Menics MT4B5AL	Blue, Clear, Green, Red, Yellow	-15 °C	40 °C	Steady	Complete Unit	5	24 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent
Menics MT4B2AL	Green, Red	-15 °C	40 °C	Steady	Complete Unit	2	24 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent
Menics ATES-G	Green	-15 °C	40 °C	Steady	Complete Unit	1	110 VAC/DC	Selector Control	Cable with Connector
Menics PTM-02-RYG	Green, Red, Yellow	-15 °C	40 °C	Flashing, Steady	Optical Element	1			Connector	IP65 - Dust Tight, Water Resistant
Menics MT5C1CL	Red	-15 °C	40 °C	Flashing, Steady	Complete Unit	1	220 VAC		Wire Leads	IP54 - Dust Protected, Water Resistant			Incandescent
