132444

Active

Amphenol RF

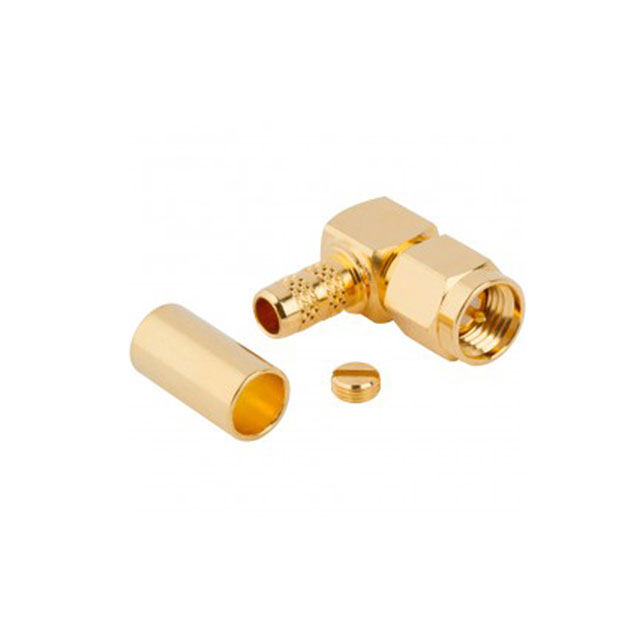

CONN SMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132444

Body Finish	Gold
Body Material	Brass
Cable Group	LMR-195
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	Ferrule, Insulator, Connector, End Cap
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Frequency - Max [Max]	Center Contact Material	Shield Termination	Center Contact Plating	Number of Ports	Connector Type	Contact Termination	Dielectric Material	Connector Style	Mating Cycles	Body Material	Body Finish	Housing Color	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Includes	Cable Group	Insertion Loss	Mounting Feature	Ingress Protection
Amphenol RF 132432	18 GHz	Beryllium Copper	Solder	Gold	1	Female Socket Receptacle	Solder	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Board Edge End Launch
Amphenol RF 132413	18 GHz	Brass	Solder	Gold	1	Male Pin Receptacle	Solder Tab	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Board Edge End Launch
Amphenol RF 132443	6000 MHz	Brass	Crimp	Gold	1	Male Pin Plug	Solder	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule 1 Insulator	LMR-195	0.3 dB
Amphenol RF 132421	6000 MHz	Phosphor Bronze	Solder	Gold	1	Female Socket Jack	Solder	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Panel Mount Through Hole	1 Connector 1 Gasket 1 Lockwasher 1 Nut			Bulkhead - Front Side Nut	IP68 - Dust Tight Waterproof
Amphenol RF 132444	6000 MHz	Brass	Crimp	Gold	1	Male Pin Plug	Solder	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Free Hanging (In-Line) Right Angle	Connector End Cap Ferrule Insulator	LMR-195	0.3 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
