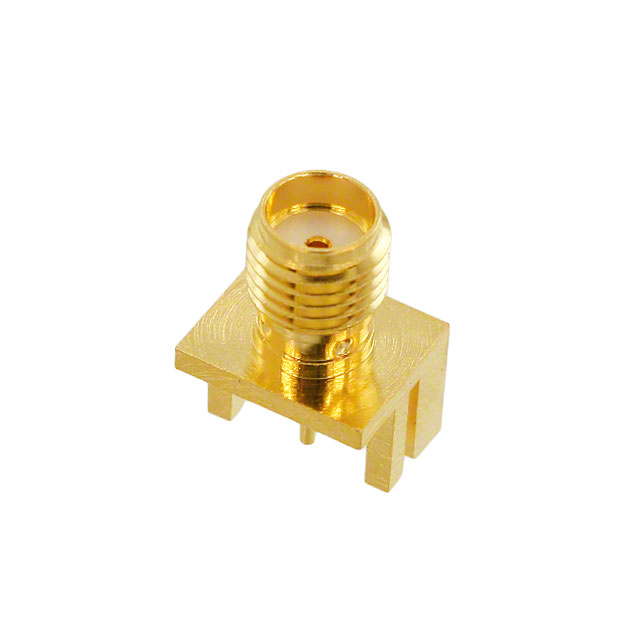

CONN SMA RCPT STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA RCPT STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	132432

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Frequency - Max [Max]	Center Contact Material	Shield Termination	Center Contact Plating	Number of Ports	Connector Type	Contact Termination	Dielectric Material	Connector Style	Mating Cycles	Body Material	Body Finish	Housing Color	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Includes	Cable Group	Insertion Loss	Mounting Feature	Ingress Protection
Amphenol RF 132432	18 GHz	Beryllium Copper	Solder	Gold	1	Female Socket Receptacle	Solder	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Board Edge End Launch
Amphenol RF 132413	18 GHz	Brass	Solder	Gold	1	Male Pin Receptacle	Solder Tab	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Board Edge End Launch
Amphenol RF 132443	6000 MHz	Brass	Crimp	Gold	1	Male Pin Plug	Solder	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule 1 Insulator	LMR-195	0.3 dB
Amphenol RF 132421	6000 MHz	Phosphor Bronze	Solder	Gold	1	Female Socket Jack	Solder	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Panel Mount Through Hole	1 Connector 1 Gasket 1 Lockwasher 1 Nut			Bulkhead - Front Side Nut	IP68 - Dust Tight Waterproof
Amphenol RF 132444	6000 MHz	Brass	Crimp	Gold	1	Male Pin Plug	Solder	Polytetrafluoroethylene (PTFE)	SMA	500	Brass	Gold	Gold	50 Ohms	-65 ░C	165 °C	Free Hanging (In-Line) Right Angle	Connector End Cap Ferrule Insulator	LMR-195	0.3 dB
