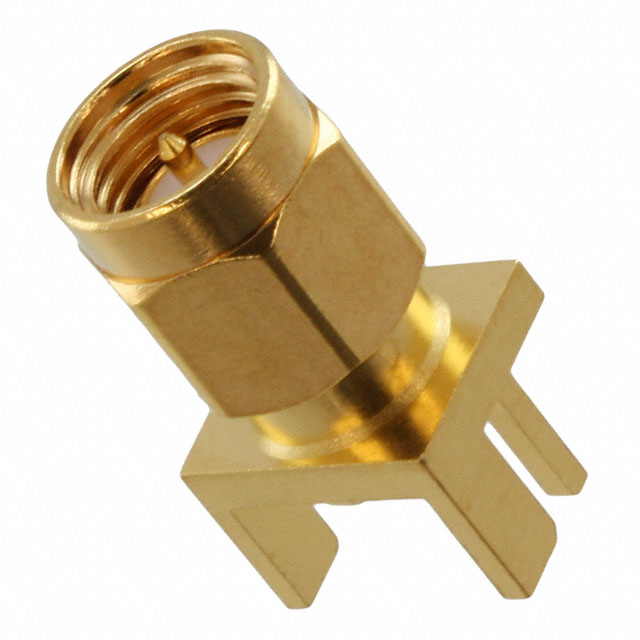

132413
ActiveAmphenol RF
CONN SMA RCPT STR 50OHM EDGE MNT
Deep-Dive with AI
Search across all available documentation for this part.
132413
ActiveAmphenol RF
CONN SMA RCPT STR 50OHM EDGE MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 132413 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder Tab |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.93 | |
| 10 | $ 12.34 | |||
| 25 | $ 11.87 | |||
| 50 | $ 11.39 | |||
| 100 | $ 10.76 | |||
| 300 | $ 9.81 | |||
| 500 | $ 9.18 | |||
| 1000 | $ 8.42 | |||
Description
General part information
1324 Series
SMA Connector Receptacle, Male Pin 50 Ohms Board Edge, End Launch Solder Tab
Documents
Technical documentation and resources
No documents available
