122148

Active

Amphenol RF

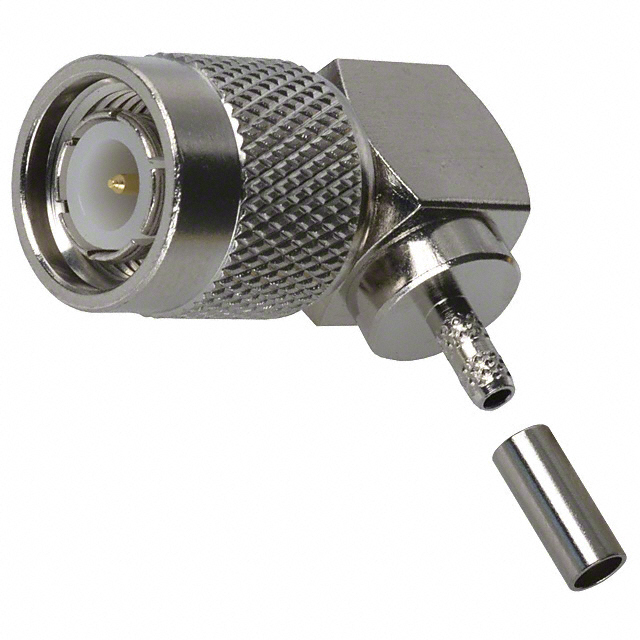

RF COAX CONN, TNC R/A PLUG, 50 OHM/11GHZ ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

122148

Active

Amphenol RF

RF COAX CONN, TNC R/A PLUG, 50 OHM/11GHZ ROHS COMPLIANT: YES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	122148

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM) Acetal
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1221 Series

Part	Center Contact Plating	Connector Type	Body Material	Mounting Type	Includes	Shield Termination	Connector Style	Body Finish	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mating Cycles	Dielectric Material	Number of Ports	Frequency - Max [Max]	Cable Group	Voltage Rating	Impedance	Housing Color	Mounting Feature
Amphenol RF 122118	Gold	Male Pin Plug	Brass	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	Crimp	TNC	Nickel	Brass	-65 ░C	165 °C	Crimp Solder	500	Polyoxymethylene (POM) Acetal	1	11 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	500 V	50 Ohms	Silver
Amphenol RF 122148	Gold	Male Pin Plug	Brass	Free Hanging (In-Line) Right Angle	1 Connector 1 End Cap 1 Ferrule	Crimp	TNC	Nickel	Brass			Solder	500	Polyoxymethylene (POM) Acetal	1	11 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	500 V	50 Ohms	Silver
Amphenol RF 122114	Gold	Male Pin Plug	Brass	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	Crimp	TNC	Nickel	Brass			Crimp	500	Polyoxymethylene (POM) Acetal	1	11 GHz	82259 88241 89259 9259 Belden 1560A RG-59 Plenum	500 V	50 Ohms	Silver
Amphenol RF 122140	Gold	Male Pin Plug	Brass	Free Hanging (In-Line) Right Angle	1 Connector 1 End Cap 1 Ferrule	Crimp	TNC	Nickel	Brass			Solder	500	Polyoxymethylene (POM) Acetal	1	11 GHz	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500 V	50 Ohms	Silver
Amphenol RF 122149	Gold	Male Pin Plug	Brass	Free Hanging (In-Line) Right Angle		Crimp	TNC	Nickel	Brass	-40 °C	85 °C	Solder	500	Polyoxymethylene (POM) Acetal	1	1 GHz	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	500 V	75 Ohms	Silver
Amphenol RF 122192	Gold	Female Socket Jack	Brass		1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve	Crimp	TNC	Nickel	Phosphor Bronze			Crimp	500	Polyoxymethylene (POM) Acetal	1	11 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	500 V	50 Ohms	Silver	Bulkhead - Front Side Nut
Amphenol RF 122163	Gold	Female Socket Jack	Brass		1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Crimp	TNC	Nickel	Phosphor Bronze			Crimp	500	Polytetrafluoroethylene (PTFE)	1	1 GHz	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	500 V	75 Ohms	Silver	Bulkhead - Front Side Nut
Amphenol RF 122168	Gold	Female Socket Jack	Brass		1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Crimp	TNC	Nickel	Phosphor Bronze			Crimp	500	Polytetrafluoroethylene (PTFE)	1	11 GHz	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500 V	50 Ohms	Silver	Bulkhead - Front Side Nut
Amphenol RF 122193	Gold	Female Socket Jack	Brass		1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Crimp	TNC	Nickel	Phosphor Bronze			Solder	500	Polyoxymethylene (POM) Acetal	1	1 GHz	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	500 V	75 Ohms	Silver	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.55
		10	$ 7.73
		25	$ 7.30
		50	$ 7.12
		100	$ 6.77
		300	$ 6.05
		500	$ 5.70
		1000	$ 4.99
Newark	Each	1	$ 9.20
		5	$ 8.69
		10	$ 8.17
		25	$ 7.28
		50	$ 6.85
		100	$ 6.42
		250	$ 6.05

Description

General part information

1221 Series

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
