122163

Active

Amphenol RF

CONN TNC JACK STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

122163

Active

Amphenol RF

CONN TNC JACK STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	122163

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms

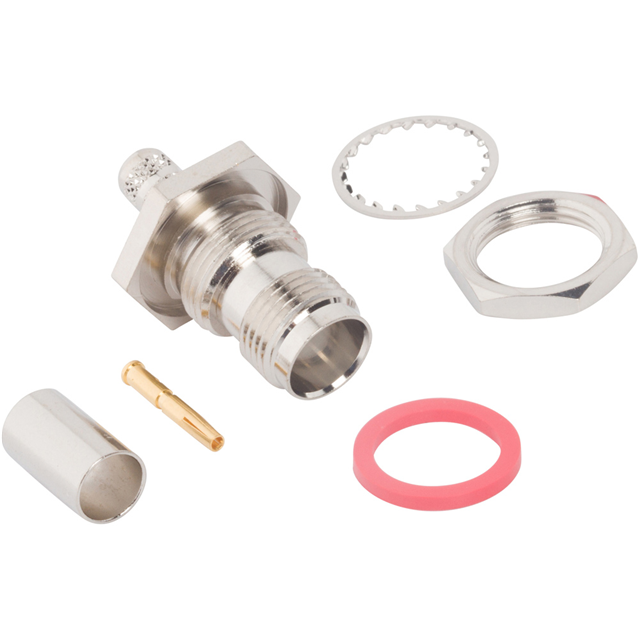

Includes	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1221 Series

Part	Center Contact Plating	Connector Type	Body Material	Mounting Type	Includes	Shield Termination	Connector Style	Body Finish	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mating Cycles	Dielectric Material	Number of Ports	Frequency - Max [Max]	Cable Group	Voltage Rating	Impedance	Housing Color	Mounting Feature
Amphenol RF 122118	Gold	Male Pin Plug	Brass	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	Crimp	TNC	Nickel	Brass	-65 ░C	165 °C	Crimp Solder	500	Polyoxymethylene (POM) Acetal	1	11 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	500 V	50 Ohms	Silver
Amphenol RF 122148	Gold	Male Pin Plug	Brass	Free Hanging (In-Line) Right Angle	1 Connector 1 End Cap 1 Ferrule	Crimp	TNC	Nickel	Brass			Solder	500	Polyoxymethylene (POM) Acetal	1	11 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	500 V	50 Ohms	Silver
Amphenol RF 122114	Gold	Male Pin Plug	Brass	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	Crimp	TNC	Nickel	Brass			Crimp	500	Polyoxymethylene (POM) Acetal	1	11 GHz	82259 88241 89259 9259 Belden 1560A RG-59 Plenum	500 V	50 Ohms	Silver
Amphenol RF 122140	Gold	Male Pin Plug	Brass	Free Hanging (In-Line) Right Angle	1 Connector 1 End Cap 1 Ferrule	Crimp	TNC	Nickel	Brass			Solder	500	Polyoxymethylene (POM) Acetal	1	11 GHz	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500 V	50 Ohms	Silver
Amphenol RF 122149	Gold	Male Pin Plug	Brass	Free Hanging (In-Line) Right Angle		Crimp	TNC	Nickel	Brass	-40 °C	85 °C	Solder	500	Polyoxymethylene (POM) Acetal	1	1 GHz	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	500 V	75 Ohms	Silver
Amphenol RF 122192	Gold	Female Socket Jack	Brass		1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve	Crimp	TNC	Nickel	Phosphor Bronze			Crimp	500	Polyoxymethylene (POM) Acetal	1	11 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174	500 V	50 Ohms	Silver	Bulkhead - Front Side Nut
Amphenol RF 122163	Gold	Female Socket Jack	Brass		1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Crimp	TNC	Nickel	Phosphor Bronze			Crimp	500	Polytetrafluoroethylene (PTFE)	1	1 GHz	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	500 V	75 Ohms	Silver	Bulkhead - Front Side Nut
Amphenol RF 122168	Gold	Female Socket Jack	Brass		1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Crimp	TNC	Nickel	Phosphor Bronze			Crimp	500	Polytetrafluoroethylene (PTFE)	1	11 GHz	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500 V	50 Ohms	Silver	Bulkhead - Front Side Nut
Amphenol RF 122193	Gold	Female Socket Jack	Brass		1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Crimp	TNC	Nickel	Phosphor Bronze			Solder	500	Polyoxymethylene (POM) Acetal	1	1 GHz	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	500 V	75 Ohms	Silver	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.39
		10	$ 8.45
		25	$ 7.96
		50	$ 7.75
		100	$ 7.55
		300	$ 6.73
		500	$ 6.33
		1000	$ 5.59

Description

General part information

1221 Series

TNC Connector Jack, Female Socket 75 Ohms Panel Mount Crimp

Documents

Technical documentation and resources

No documents available
