ActiveAmphenol RF

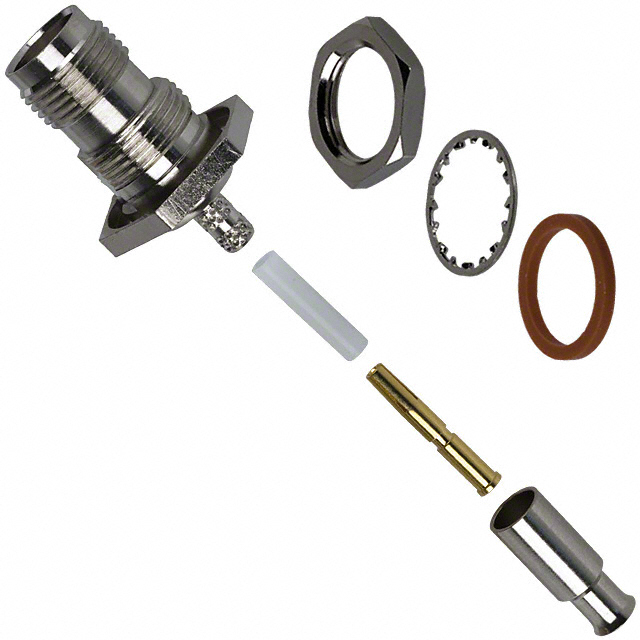

CONN TNC 0HZ TO 11GHZ 50OHM CRIMP ST PANEL MOUNT F GOLD
Deep-Dive with AI
Search across all available documentation for this part.
122192
ActiveAmphenol RF
CONN TNC 0HZ TO 11GHZ 50OHM CRIMP ST PANEL MOUNT F GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 122192 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Contact, 1 Nut, 1 Connector, 1 Gasket, 1 Ferrule, 1 Lockwasher, 1 Sleeve |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
1221 Series
| Part | Center Contact Plating | Connector Type | Body Material | Mounting Type | Includes | Shield Termination | Connector Style | Body Finish | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Mating Cycles | Dielectric Material | Number of Ports | Frequency - Max [Max] | Cable Group | Voltage Rating | Impedance | Housing Color | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Gold | Male Pin Plug | Brass | Free Hanging (In-Line) | 1 Connector 1 Contact 1 Ferrule | Crimp | TNC | Nickel | Brass | -65 ░C | 165 °C | Crimp Solder | 500 | Polyoxymethylene (POM) Acetal | 1 | 11 GHz | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 500 V | 50 Ohms | Silver | |
Amphenol RF | Gold | Male Pin Plug | Brass | Free Hanging (In-Line) Right Angle | 1 Connector 1 End Cap 1 Ferrule | Crimp | TNC | Nickel | Brass | Solder | 500 | Polyoxymethylene (POM) Acetal | 1 | 11 GHz | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 500 V | 50 Ohms | Silver | |||
Amphenol RF | Gold | Male Pin Plug | Brass | Free Hanging (In-Line) | 1 Connector 1 Contact 1 Ferrule | Crimp | TNC | Nickel | Brass | Crimp | 500 | Polyoxymethylene (POM) Acetal | 1 | 11 GHz | 82259 88241 89259 9259 Belden 1560A RG-59 Plenum | 500 V | 50 Ohms | Silver | |||
Amphenol RF | Gold | Male Pin Plug | Brass | Free Hanging (In-Line) Right Angle | 1 Connector 1 End Cap 1 Ferrule | Crimp | TNC | Nickel | Brass | Solder | 500 | Polyoxymethylene (POM) Acetal | 1 | 11 GHz | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | 500 V | 50 Ohms | Silver | |||
Amphenol RF | Gold | Male Pin Plug | Brass | Free Hanging (In-Line) Right Angle | Crimp | TNC | Nickel | Brass | -40 °C | 85 °C | Solder | 500 | Polyoxymethylene (POM) Acetal | 1 | 1 GHz | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | 500 V | 75 Ohms | Silver | ||
Amphenol RF | Gold | Female Socket Jack | Brass | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve | Crimp | TNC | Nickel | Phosphor Bronze | Crimp | 500 | Polyoxymethylene (POM) Acetal | 1 | 11 GHz | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 500 V | 50 Ohms | Silver | Bulkhead - Front Side Nut | |||
Amphenol RF | Gold | Female Socket Jack | Brass | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | Crimp | TNC | Nickel | Phosphor Bronze | Crimp | 500 | Polytetrafluoroethylene (PTFE) | 1 | 1 GHz | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | 500 V | 75 Ohms | Silver | Bulkhead - Front Side Nut | |||
Amphenol RF | Gold | Female Socket Jack | Brass | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | Crimp | TNC | Nickel | Phosphor Bronze | Crimp | 500 | Polytetrafluoroethylene (PTFE) | 1 | 11 GHz | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | 500 V | 50 Ohms | Silver | Bulkhead - Front Side Nut | |||
Amphenol RF | Gold | Female Socket Jack | Brass | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | Crimp | TNC | Nickel | Phosphor Bronze | Solder | 500 | Polyoxymethylene (POM) Acetal | 1 | 1 GHz | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | 500 V | 75 Ohms | Silver | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1221 Series
TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
