EDAC Inc.

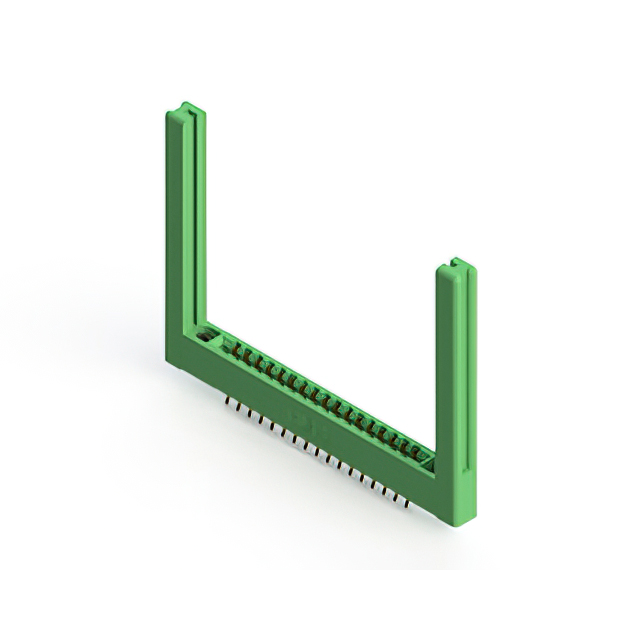

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

305-034-556-258

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	305-034-556-258

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

305-034 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Read Out	Number of Positions	Pitch [x]	Pitch [x]	Gender	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Termination Rows	Flange Feature	Material - Insulation	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 305-034-555-268	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic
EDAC Inc. 305-034-520-578	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Panel Mount Through Hole	2	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic
EDAC Inc. 305-034-556-508	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Card Extender
EDAC Inc. 305-034-521-503	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Panel Mount Through Hole	2	2	Floating Bobbin Flush Mount	Polyester Thermoplastic		0.116 in	2.95 mm
EDAC Inc. 305-034-556-258	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic
EDAC Inc. 305-034-555-258	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic
EDAC Inc. 305-034-555-204	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	2	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Card Extender	0.156 in	3.96 mm
EDAC Inc. 305-034-500-208	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder Eyelet(s)	10 Áin	0.25 Ám		2	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic
EDAC Inc. 305-034-556-268	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic
EDAC Inc. 305-034-556-278	-40 °C	105 ░C	Copper Alloy	Gold	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Dual	34	0.156 in	3.96 mm	Female	Green	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic
