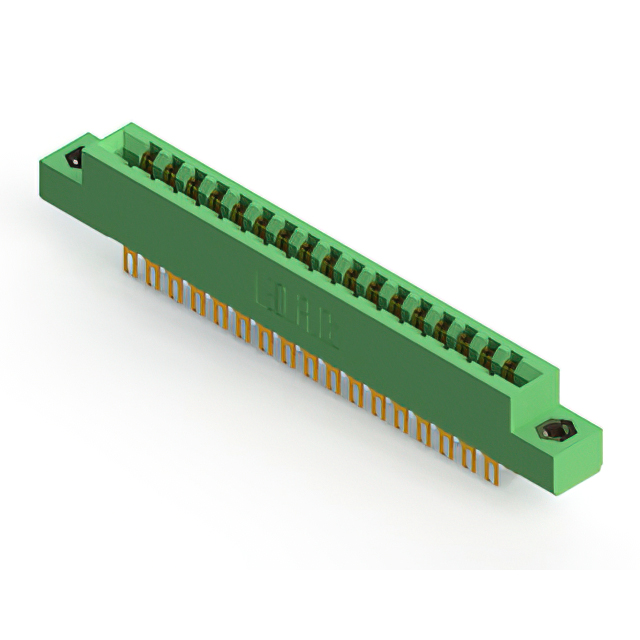

Specification	305-034-500-208

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount
Number of Positions	34, 17
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

305-034 Series

Part	Gender	Mounting Type	Pitch	Contact Material	Contact Finish	Contact Finish Thickness	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Features	Flange Feature	Card Type	Number of Positions	Color	Contact Type	Termination	Card Thickness (Min)	Card Thickness (Max)	Read Out	Termination Rows	Material - Insulation	Flange Feature Diameter
EDAC Inc. 305-034-555-268	Female	Board Edge Straddle Mount	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 305-034-520-578	Female	Panel Mount Through Hole	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 305-034-520-204	Female	Panel Mount Through Hole	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C		Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic	0.156 in
EDAC Inc. 305-034-555-502	Female	Board Edge Straddle Mount	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C	Card Extender	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic	0.128 in
EDAC Inc. 305-034-556-508	Female	Board Edge Straddle Mount	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C	Card Extender	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 305-034-521-503	Female	Panel Mount Through Hole	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C		Floating Bobbin Flush Mount	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic	0.116 in
EDAC Inc. 305-034-556-258	Female	Board Edge Straddle Mount	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 305-034-555-258	Female	Board Edge Straddle Mount	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 305-034-500-208	Female	Panel Mount	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder Eyelet(s)	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic
EDAC Inc. 305-034-521-204	Female	Panel Mount Through Hole	0.156 in	Copper Alloy	Gold	10 Ąin	2	-40 °C	105 °C		Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	17 34	Green	Semi Bellows	Solder	0.054 in	0.07 in	Dual	2 rows	Polyester Thermoplastic	0.156 in
