305-034-556-268
ActiveEDAC Inc.

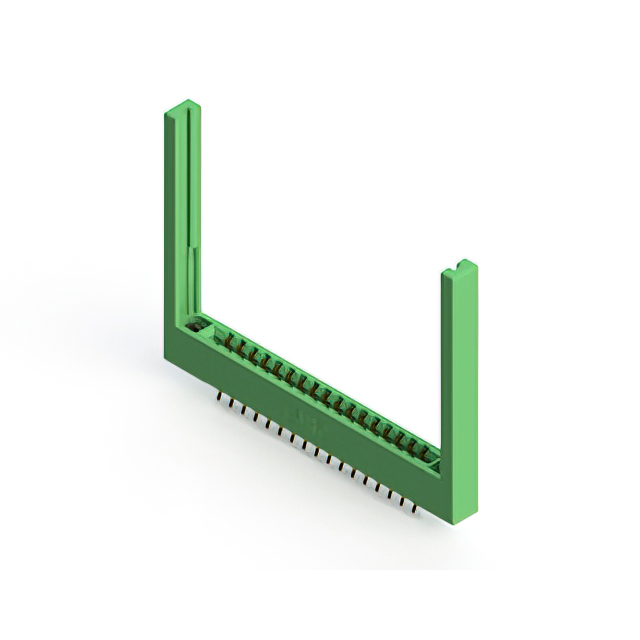

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-034-556-268
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-034-556-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-034 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Read Out | Number of Positions | Pitch [x] | Pitch [x] | Gender | Color | Termination | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Termination Rows | Flange Feature | Material - Insulation | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Panel Mount Through Hole | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Card Extender | ||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Panel Mount Through Hole | 2 | 2 | Floating Bobbin Flush Mount | Polyester Thermoplastic | 0.116 in | 2.95 mm | |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | 2 | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Card Extender | 0.156 in | 3.96 mm |
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | ||||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | |||
EDAC Inc. | -40 °C | 105 ░C | Copper Alloy | Gold | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | 34 | 0.156 in | 3.96 mm | Female | Green | Solder | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
305-034 Series
34 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
