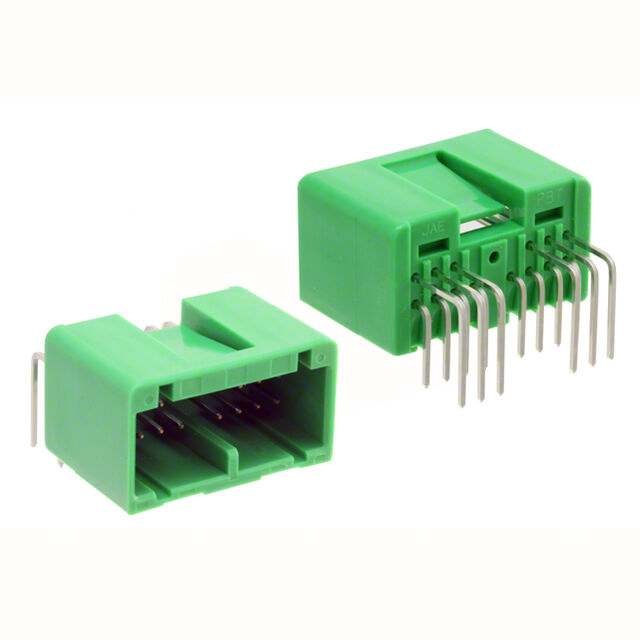

IL-AG5-14P-D3L2-A

Active

JAE Electronics

CONN HEADER R/A 14POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Transportation Guide

IL-AG5-14P-D3L2-A

Active

JAE Electronics

CONN HEADER R/A 14POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet Transportation Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG5-14P-D3L2-A

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.4 mm
Contact Length - Mating	0.331 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Green
Insulation Height	0.591 in
Insulation Height	15 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

IL-AG5-1 Series

Part	Number of Positions	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Row Spacing [x]	Row Spacing [x]	Contact Type	Note	Number of Rows	Connector Type	Mounting Type	Color	Contact Termination	Number of Positions	Style	Applications	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Fastening Type	Contact Material	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Features	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Mated Stacking Heights
JAE Electronics IL-AG5-14S-D3C1-A	14	0.098 in	2.5 mm	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	Female Socket	Contacts Not Included	2	Receptacle	Free Hanging (In-Line)	Green	Crimp
JAE Electronics IL-AG5-16P-D3C1		0.098 in	2.5 mm	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	Male Pin	Contacts Not Included	2	Plug	Free Hanging (In-Line)	Green	Crimp	16
JAE Electronics IL-AG5-18P-D3L2	18			85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		2	Header	Through Hole Right Angle				Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Push-Pull	Brass	3.5 mm	0.138 in	3 A	Board Guide	All	3 mm	0.118 in	0.591 in	15 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in
JAE Electronics IL-AG5-16S-D3C1-A		0.098 in	2.5 mm	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	Female Socket	Contacts Not Included	2	Receptacle	Free Hanging (In-Line)	Green	Crimp	16
JAE Electronics IL-AG5-10P-S3T2	10			85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		1	Header	Through Hole				Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Push-Pull	Brass	3.5 mm	0.138 in	3 A		All			0.717 in	18.2 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in	15.09 mm	0.594 in	28.2 mm
JAE Electronics IL-AG5-14P-D3L2-A	14			85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		2	Header	Through Hole Right Angle				Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Push-Pull	Brass	3.5 mm	0.138 in	3 A	Board Guide	All	3 mm	0.118 in	0.591 in	15 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in
JAE Electronics IL-AG5-16P-D3L2-A				85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		2	Header	Through Hole Right Angle			16	Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Push-Pull	Brass	3.5 mm	0.138 in	3 A	Board Guide	All	3 mm	0.118 in	0.591 in	15 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in
JAE Electronics IL-AG5-16P-D3T2-A				85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		2	Header	Through Hole			16	Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Latch Lock	Brass	3.5 mm	0.138 in	3 A		All	3 mm	0.118 in	0.717 in	18.2 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in	15.09 mm	0.594 in
JAE Electronics IL-AG5-18S-D3C1	18	0.098 in	2.5 mm	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	Female Socket	Contacts Not Included	2	Receptacle	Free Hanging (In-Line)	Green	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.66
		10	$ 1.45
		100	$ 1.29
		500	$ 1.08
		1000	$ 0.92
		5000	$ 0.82
		10000	$ 0.80

Description

General part information

IL-AG5-1 Series

Connector Header Through Hole, Right Angle 14 position 0.098" (2.50mm)

Documents

Technical documentation and resources

Datasheet

Transportation Guide

Datasheet
