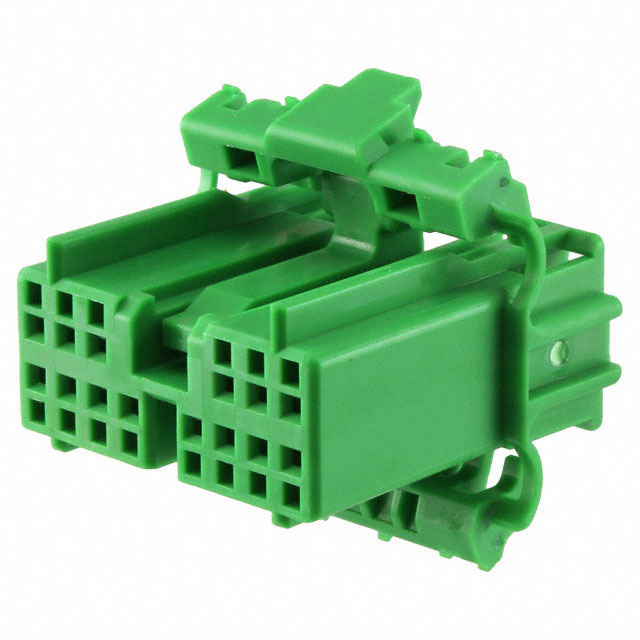

IL-AG5-14S-D3C1-A

Active

JAE Electronics

COMBINATION LINE CONNECTOR, 14 CONTACT(S), FEMALE, CRIMP TERMINAL, SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Transportation Guide

IL-AG5-14S-D3C1-A

Active

JAE Electronics

COMBINATION LINE CONNECTOR, 14 CONTACT(S), FEMALE, CRIMP TERMINAL, SOCKET

Deep-Dive with AI

DocumentsDatasheet Transportation Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG5-14S-D3C1-A

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

IL-AG5-1 Series

Part	Number of Positions	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Row Spacing [x]	Row Spacing [x]	Contact Type	Note	Number of Rows	Connector Type	Mounting Type	Color	Contact Termination	Number of Positions	Style	Applications	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Fastening Type	Contact Material	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Features	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Mated Stacking Heights
JAE Electronics IL-AG5-14S-D3C1-A	14	0.098 in	2.5 mm	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	Female Socket	Contacts Not Included	2	Receptacle	Free Hanging (In-Line)	Green	Crimp
JAE Electronics IL-AG5-16P-D3C1		0.098 in	2.5 mm	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	Male Pin	Contacts Not Included	2	Plug	Free Hanging (In-Line)	Green	Crimp	16
JAE Electronics IL-AG5-18P-D3L2	18			85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		2	Header	Through Hole Right Angle				Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Push-Pull	Brass	3.5 mm	0.138 in	3 A	Board Guide	All	3 mm	0.118 in	0.591 in	15 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in
JAE Electronics IL-AG5-16S-D3C1-A		0.098 in	2.5 mm	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	Female Socket	Contacts Not Included	2	Receptacle	Free Hanging (In-Line)	Green	Crimp	16
JAE Electronics IL-AG5-10P-S3T2	10			85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		1	Header	Through Hole				Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Push-Pull	Brass	3.5 mm	0.138 in	3 A		All			0.717 in	18.2 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in	15.09 mm	0.594 in	28.2 mm
JAE Electronics IL-AG5-14P-D3L2-A	14			85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		2	Header	Through Hole Right Angle				Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Push-Pull	Brass	3.5 mm	0.138 in	3 A	Board Guide	All	3 mm	0.118 in	0.591 in	15 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in
JAE Electronics IL-AG5-16P-D3L2-A				85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		2	Header	Through Hole Right Angle			16	Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Push-Pull	Brass	3.5 mm	0.138 in	3 A	Board Guide	All	3 mm	0.118 in	0.591 in	15 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in
JAE Electronics IL-AG5-16P-D3T2-A				85 °C	-40 °C	Polybutylene Terephthalate (PBT)			Male Pin		2	Header	Through Hole			16	Board to Cable/Wire	Automotive	Green	2.5 mm	0.098 in	Square	Solder	Latch Lock	Brass	3.5 mm	0.138 in	3 A		All	3 mm	0.118 in	0.717 in	18.2 mm	Tin	Shrouded - 4 Wall	8.4 mm	0.331 in	15.09 mm	0.594 in
JAE Electronics IL-AG5-18S-D3C1	18	0.098 in	2.5 mm	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	Female Socket	Contacts Not Included	2	Receptacle	Free Hanging (In-Line)	Green	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.79
		10	$ 0.67
		25	$ 0.64
		50	$ 0.63
		100	$ 0.60
		250	$ 0.55
		500	$ 0.49
		1000	$ 0.44
		2500	$ 0.40

Description

General part information

IL-AG5-1 Series

14 Rectangular Connectors - Housings Receptacle Green 0.098" (2.50mm)

Documents

Technical documentation and resources

Datasheet

Transportation Guide
