IL-AG5-18P-D3L2
ActiveJAE Electronics

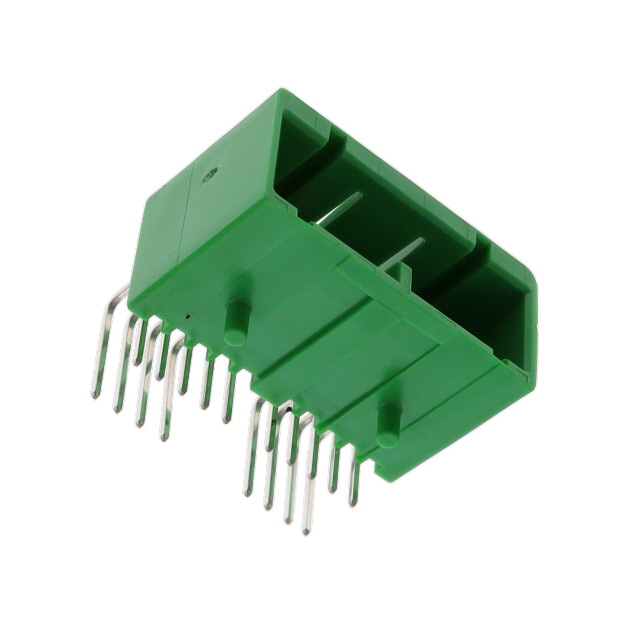

CONN HEADER R/A 18POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
IL-AG5-18P-D3L2
ActiveJAE Electronics
CONN HEADER R/A 18POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-AG5-18P-D3L2 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 8.4 mm |
| Contact Length - Mating | 0.331 in |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Green |
| Insulation Height | 0.591 in |
| Insulation Height | 15 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
IL-AG5-1 Series
| Part | Number of Positions | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Row Spacing [x] | Row Spacing [x] | Contact Type | Note | Number of Rows | Connector Type | Mounting Type | Color | Contact Termination | Number of Positions | Style | Applications | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Shape | Termination | Fastening Type | Contact Material | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Features | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Contact Finish - Post | Shrouding | Contact Length - Mating | Contact Length - Mating | Overall Contact Length | Overall Contact Length | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 14 | 0.098 in | 2.5 mm | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | 0.118 in | 3 mm | Female Socket | Contacts Not Included | 2 | Receptacle | Free Hanging (In-Line) | Green | Crimp | ||||||||||||||||||||||||||
JAE Electronics | 0.098 in | 2.5 mm | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | 0.118 in | 3 mm | Male Pin | Contacts Not Included | 2 | Plug | Free Hanging (In-Line) | Green | Crimp | 16 | ||||||||||||||||||||||||||
JAE Electronics | 18 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Male Pin | 2 | Header | Through Hole Right Angle | Board to Cable/Wire | Automotive | Green | 2.5 mm | 0.098 in | Square | Solder | Push-Pull | Brass | 3.5 mm | 0.138 in | 3 A | Board Guide | All | 3 mm | 0.118 in | 0.591 in | 15 mm | Tin | Shrouded - 4 Wall | 8.4 mm | 0.331 in | |||||||||||
JAE Electronics | 0.098 in | 2.5 mm | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | 0.118 in | 3 mm | Female Socket | Contacts Not Included | 2 | Receptacle | Free Hanging (In-Line) | Green | Crimp | 16 | ||||||||||||||||||||||||||
JAE Electronics | 10 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Male Pin | 1 | Header | Through Hole | Board to Cable/Wire | Automotive | Green | 2.5 mm | 0.098 in | Square | Solder | Push-Pull | Brass | 3.5 mm | 0.138 in | 3 A | All | 0.717 in | 18.2 mm | Tin | Shrouded - 4 Wall | 8.4 mm | 0.331 in | 15.09 mm | 0.594 in | 28.2 mm | |||||||||||
JAE Electronics | 14 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Male Pin | 2 | Header | Through Hole Right Angle | Board to Cable/Wire | Automotive | Green | 2.5 mm | 0.098 in | Square | Solder | Push-Pull | Brass | 3.5 mm | 0.138 in | 3 A | Board Guide | All | 3 mm | 0.118 in | 0.591 in | 15 mm | Tin | Shrouded - 4 Wall | 8.4 mm | 0.331 in | |||||||||||
JAE Electronics | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Male Pin | 2 | Header | Through Hole Right Angle | 16 | Board to Cable/Wire | Automotive | Green | 2.5 mm | 0.098 in | Square | Solder | Push-Pull | Brass | 3.5 mm | 0.138 in | 3 A | Board Guide | All | 3 mm | 0.118 in | 0.591 in | 15 mm | Tin | Shrouded - 4 Wall | 8.4 mm | 0.331 in | |||||||||||
JAE Electronics | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Male Pin | 2 | Header | Through Hole | 16 | Board to Cable/Wire | Automotive | Green | 2.5 mm | 0.098 in | Square | Solder | Latch Lock | Brass | 3.5 mm | 0.138 in | 3 A | All | 3 mm | 0.118 in | 0.717 in | 18.2 mm | Tin | Shrouded - 4 Wall | 8.4 mm | 0.331 in | 15.09 mm | 0.594 in | ||||||||||
JAE Electronics | 18 | 0.098 in | 2.5 mm | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | 0.118 in | 3 mm | Female Socket | Contacts Not Included | 2 | Receptacle | Free Hanging (In-Line) | Green | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.63 | |
| 10 | $ 2.38 | |||
| 25 | $ 2.26 | |||
| 50 | $ 2.21 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.84 | |||
| 672 | $ 1.79 | |||
| 1344 | $ 1.52 | |||
| 2688 | $ 1.42 | |||
Description
General part information
IL-AG5-1 Series
Connector Header Through Hole, Right Angle 18 position 0.098" (2.50mm)
Documents
Technical documentation and resources
