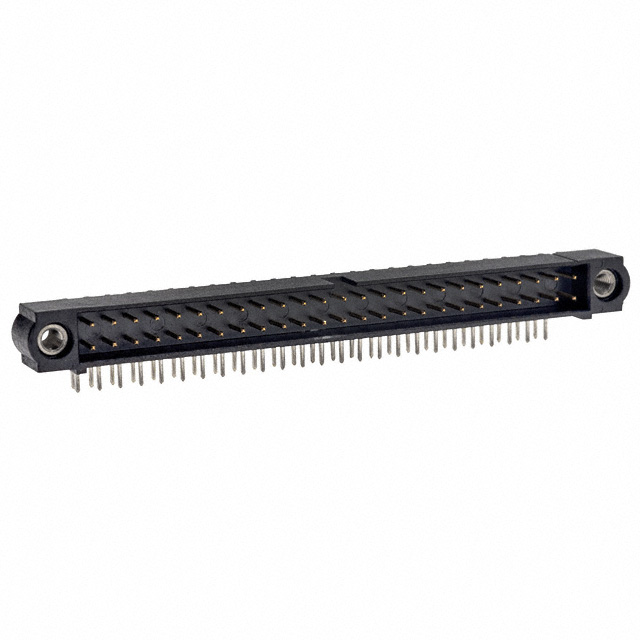

M80-5L14242MC
ActiveHarwin Inc.
CONN HEADER R/A 42POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
M80-5L14242MC
ActiveHarwin Inc.
CONN HEADER R/A 42POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5L14242MC |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Push-Turn Lock |
| Features | Keying Slot, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 0.218 in |
| Insulation Height | 5.55 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 42 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 120 VDC |
M80-5L1 Series
| Part | Mounting Type | Connector Type | Insulation Color | Pitch - Mating [x] | Pitch - Mating [x] | Contact Shape | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Contact Finish - Mating | Termination | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Height | Insulation Height | Number of Positions Loaded | Features | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Contact Material | Contact Type | Number of Positions | Style | Insulation Material | Material Flammability Rating | Fastening Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular Square | 0.118 in | 3 mm | 3 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | 0.3 µm | 12 µin | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Jackscrews Mating Guide | Tin | 0.079 in | 2 mm | 800 VAC | Phosphor Bronze Alloy | Male Pin | 26 | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | ||||||
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular | 0.118 in | 3 mm | 2.2 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | 3 µm | 118.1 µin | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Keying Slot Mating Flange | Tin | 0.079 in | 2 mm | 120 VDC | Phosphor Bronze | Male Pin | 4 | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Push-Turn Lock | |||||
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular | 0.118 in | 3 mm | 2.2 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | 3 µm | 118.1 µin | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Keying Slot Mating Flange | Tin | 0.079 in | 2 mm | 120 VDC | Phosphor Bronze | Male Pin | 10 | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Push-Turn Lock | |||||
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular | 0.118 in | 3 mm | 2.2 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | 3 µm | 118.1 µin | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Keying Slot Mating Flange | Tin | 0.079 in | 2 mm | 120 VDC | Phosphor Bronze | Male Pin | 20 | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Push-Turn Lock | |||||
Harwin Inc. | Through Hole Right Angle | Header | Black | Circular | 0.118 in | 3 mm | 2.2 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.079 in | 2 mm | 800 V | Male Pin | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 4 | 6 | 2 | ||||||||||
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular | 0.118 in | 3 mm | Gold | Solder | 2 | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.079 in | 2 mm | 800 V | Male Pin | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | 4 | 6 | 2 | |||||||||||
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular | 0.118 in | 3 mm | 2.2 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | 3 µm | 118.1 µin | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Keying Slot Mating Flange | Tin | 0.079 in | 2 mm | 120 VDC | Phosphor Bronze | Male Pin | 6 | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Push-Turn Lock | |||||
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular | 2.2 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | 0.3 µm | 12 µin | -55 °C | 125 °C | Shrouded - 4 Wall | All | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Tin | 800 VAC | Copper | Female Socket | 18 | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | |||||||||
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular | 0.118 in | 3 mm | 2.2 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | 0.3 µm | 12 µin | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Tin | 0.079 in | 2 mm | 800 VAC | Phosphor Bronze | Male Pin | 30 | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Push-Turn Lock | |||||
Harwin Inc. | Through Hole Right Angle | Header | Black | 0.079 in | 2 mm | Circular | 0.118 in | 3 mm | 2.2 A | Gold | Solder | 2 | 29.5 Áin | 0.75 Ám | 3 µm | 118.1 µin | -55 °C | 125 °C | Shrouded - 4 Wall | 0.218 in | 5.55 mm | All | Keying Slot Mating Flange | Tin | 0.079 in | 2 mm | 120 VDC | Phosphor Bronze | Male Pin | 42 | Board to Board Cable | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Push-Turn Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 240 | $ 8.04 | |
Description
General part information
M80-5L1 Series
Connector Header Through Hole, Right Angle 42 position 0.079" (2.00mm)
