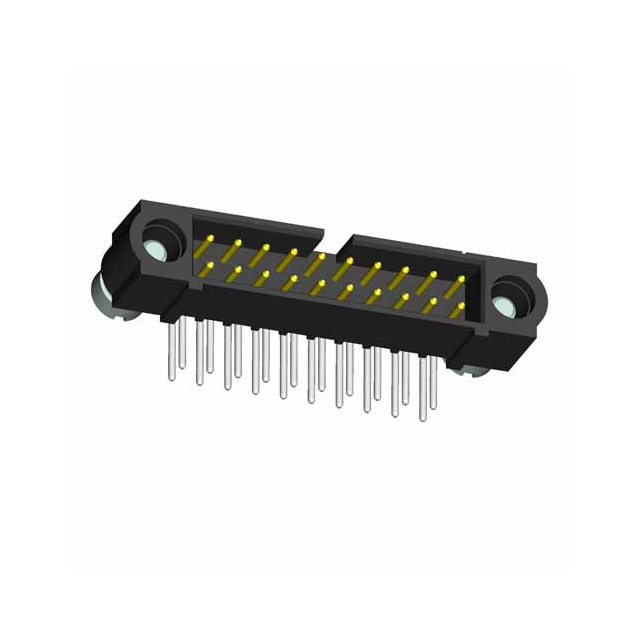

M80-5L12642MA

Active

Harwin Inc.

CONN HDR 2MM R/A W/SCREW 26POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 Datasheet +2

M80-5L12642MA

Active

Harwin Inc.

CONN HDR 2MM R/A W/SCREW 26POS

Deep-Dive with AI

DocumentsM80-001 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5L12642MA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	0.3 µm
Contact Finish Thickness - Post	12 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze Alloy
Contact Shape	Circular, Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Features	Jackscrews, Mating Guide
Insulation Color	Black
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 VAC

M80-5L1 Series

Part	Mounting Type	Connector Type	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Finish - Mating	Termination	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height	Insulation Height	Number of Positions Loaded	Features	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Material	Contact Type	Number of Positions	Style	Insulation Material	Material Flammability Rating	Fastening Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Harwin Inc. M80-5L12642MA	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular Square	0.118 in	3 mm	3 A	Gold	Solder	2	29.5 Áin	0.75 Ám	0.3 µm	12 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Jackscrews Mating Guide	Tin	0.079 in	2 mm	800 VAC	Phosphor Bronze Alloy	Male Pin	26	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M80-5L10442MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	4	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L11042MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	10	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L12042MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	20	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L10422M5-02-333-00-000	Through Hole Right Angle	Header	Black			Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám			-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange Mounting Flange Mounting Hardware		0.079 in	2 mm	800 V		Male Pin		Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0		4	6	2
Harwin Inc. M80-5L10405M5-02-333-00-000	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm		Gold	Solder	2					-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange Mounting Flange Mounting Hardware		0.079 in	2 mm	800 V		Male Pin		Board to Cable/Wire	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0		4	6	2
Harwin Inc. M80-5L10642MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	6	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L11842MD	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular			2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	0.3 µm	12 µin	-55 °C	125 °C	Shrouded - 4 Wall			All	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Tin			800 VAC	Copper	Female Socket	18	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Pull				2.54 mm	0.1 in
Harwin Inc. M80-5L13042MD	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	0.3 µm	12 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Tin	0.079 in	2 mm	800 VAC	Phosphor Bronze	Male Pin	30	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L14242MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	42	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M80-5L1 Series

Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80-001

Datasheet

M80-0110001

M80, M83 Series Spec Sheet

Datasheet
