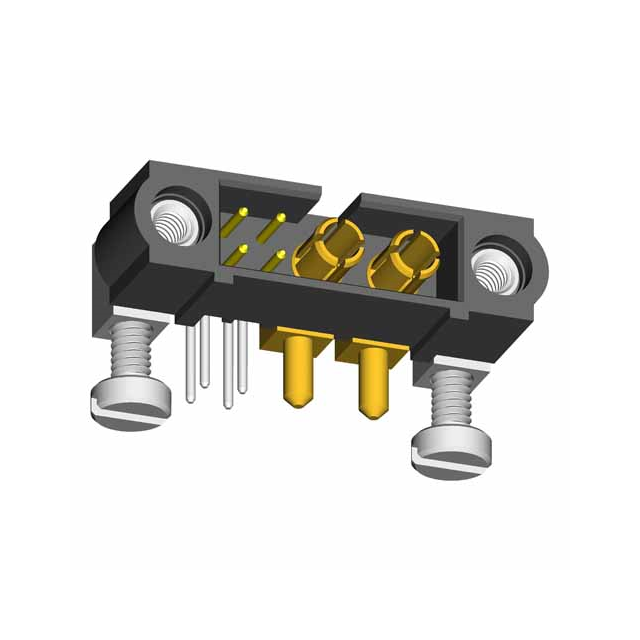

M80-5L10422M5-02-333-00-000

Obsolete

Harwin Inc.

CONN HEADER R/A 6POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M80-5L10422M5-02-333-00-000

Obsolete

Harwin Inc.

CONN HEADER R/A 6POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5L10422M5-02-333-00-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	4
Number of Positions [custom]	6
Number of Positions [custom]	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-5L1 Series

Part	Mounting Type	Connector Type	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Finish - Mating	Termination	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height	Insulation Height	Number of Positions Loaded	Features	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Material	Contact Type	Number of Positions	Style	Insulation Material	Material Flammability Rating	Fastening Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Harwin Inc. M80-5L12642MA	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular Square	0.118 in	3 mm	3 A	Gold	Solder	2	29.5 Áin	0.75 Ám	0.3 µm	12 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Jackscrews Mating Guide	Tin	0.079 in	2 mm	800 VAC	Phosphor Bronze Alloy	Male Pin	26	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0
Harwin Inc. M80-5L10442MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	4	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L11042MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	10	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L12042MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	20	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L10422M5-02-333-00-000	Through Hole Right Angle	Header	Black			Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám			-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange Mounting Flange Mounting Hardware		0.079 in	2 mm	800 V		Male Pin		Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0		4	6	2
Harwin Inc. M80-5L10405M5-02-333-00-000	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm		Gold	Solder	2					-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange Mounting Flange Mounting Hardware		0.079 in	2 mm	800 V		Male Pin		Board to Cable/Wire	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0		4	6	2
Harwin Inc. M80-5L10642MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	6	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L11842MD	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular			2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	0.3 µm	12 µin	-55 °C	125 °C	Shrouded - 4 Wall			All	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Tin			800 VAC	Copper	Female Socket	18	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Pull				2.54 mm	0.1 in
Harwin Inc. M80-5L13042MD	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	0.3 µm	12 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Tin	0.079 in	2 mm	800 VAC	Phosphor Bronze	Male Pin	30	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock
Harwin Inc. M80-5L14242MC	Through Hole Right Angle	Header	Black	0.079 in	2 mm	Circular	0.118 in	3 mm	2.2 A	Gold	Solder	2	29.5 Áin	0.75 Ám	3 µm	118.1 µin	-55 °C	125 °C	Shrouded - 4 Wall	0.218 in	5.55 mm	All	Keying Slot Mating Flange	Tin	0.079 in	2 mm	120 VDC	Phosphor Bronze	Male Pin	42	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Push-Turn Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M80-5L1 Series

Connector Header Through Hole, Right Angle 6 (4 + 2 Power) position
