LDBAA2120JC5N0

Active

KEMET

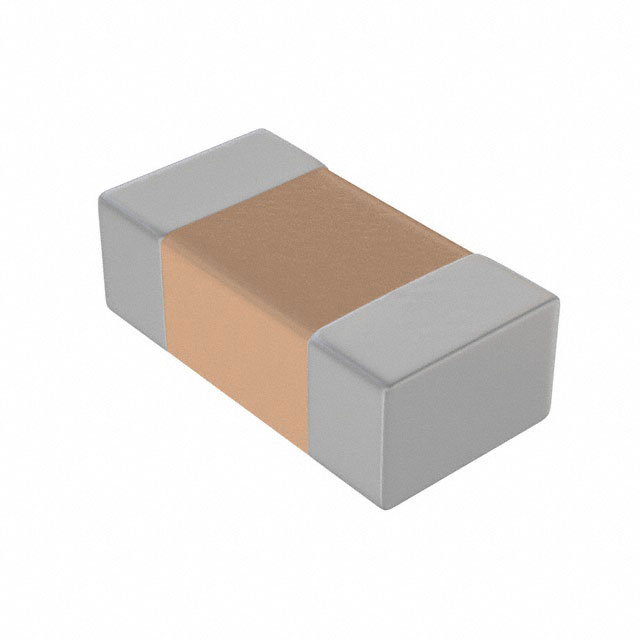

FILM CAPACITOR, POLYPHENYLENE SULPHIDE, 16V, 5% +TOL, 5% -TOL, 0.012UF, SURFACE MOUNT, 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_F3082_LDB.pdf LDBAA2120JC5N0 Spec +1

LDBAA2120JC5N0

Active

KEMET

FILM CAPACITOR, POLYPHENYLENE SULPHIDE, 16V, 5% +TOL, 5% -TOL, 0.012UF, SURFACE MOUNT, 1206

Deep-Dive with AI

DocumentsKEM_F3082_LDB.pdf LDBAA2120JC5N0 Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDBAA2120JC5N0

Applications	General Purpose
Capacitance	0.012 µF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized - Stacked
Height - Seated (Max) [Max] [z]	0.043 in
Height - Seated (Max) [Max] [z]	1.1 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.3 mm
Size / Dimension [x]	0.13 in
Size / Dimension [y]	1.7 mm
Size / Dimension [y]	0.067 in
Termination	Solder Pads
Tolerance	5 %
Voltage Rating - DC	16 V

LDBAA Series

Part	Mounting Type	Termination	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Voltage Rating - DC	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET LDBAA2390JC5N0	Surface Mount	Solder Pads	1.7 mm	3.3 mm	0.13 in	0.067 in	General Purpose	-55 °C	125 °C	1206 (3216 Metric)	0.039 µF	1.2 mm	0.047 in	5 %	16 V	Polyphenylene Sulfide (PPS) Metallized - Stacked
KEMET LDBAA2330GC5N0	Surface Mount	Solder Pads	1.7 mm	3.3 mm	0.13 in	0.067 in	General Purpose	-55 °C	125 °C	1206 (3216 Metric)	0.033 çF			2 %	16 V	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.043 in	1.1 mm
KEMET LDBAA2220JC5N0	Surface Mount	Solder Pads	1.7 mm	3.3 mm	0.13 in	0.067 in	General Purpose	-55 °C	125 °C	1206 (3216 Metric)	0.022 µF			5 %	16 V	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.043 in	1.1 mm
KEMET LDBAA2270JC5N0	Surface Mount	Solder Pads	1.7 mm	3.3 mm	0.13 in	0.067 in	General Purpose	-55 °C	125 °C	1206 (3216 Metric)	0.027 µF			5 %	16 V	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.043 in	1.1 mm
KEMET LDBAA2220GC5N0	Surface Mount	Solder Pads	1.7 mm	3.3 mm	0.13 in	0.067 in	General Purpose	-55 °C	125 °C	1206 (3216 Metric)	0.022 µF			2 %	16 V	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.043 in	1.1 mm
KEMET LDBAA2270GC5N0	Surface Mount	Solder Pads	1.7 mm	3.3 mm	0.13 in	0.067 in	General Purpose	-55 °C	125 °C	1206 (3216 Metric)	0.027 µF			2 %	16 V	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.043 in	1.1 mm
KEMET LDBAA2120JC5N0	Surface Mount	Solder Pads	1.7 mm	3.3 mm	0.13 in	0.067 in	General Purpose	-55 °C	125 °C	1206 (3216 Metric)	0.012 µF			5 %	16 V	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.043 in	1.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.16
	Digi-Reel®	1	$ 1.16
	Tape & Reel (TR)	3000	$ 0.43
Newark	Each (Supplied on Full Reel)	1	$ 0.53
		5000	$ 0.52
		10000	$ 0.48
		20000	$ 0.45
		30000	$ 0.42
		50000	$ 0.40

Description

General part information

LDBAA Series

0.012 µF Film Capacitor 16V Polyphenylene Sulfide (PPS), Metallized - Stacked 1206 (3216 Metric)
