192116
ActiveAmphenol RF

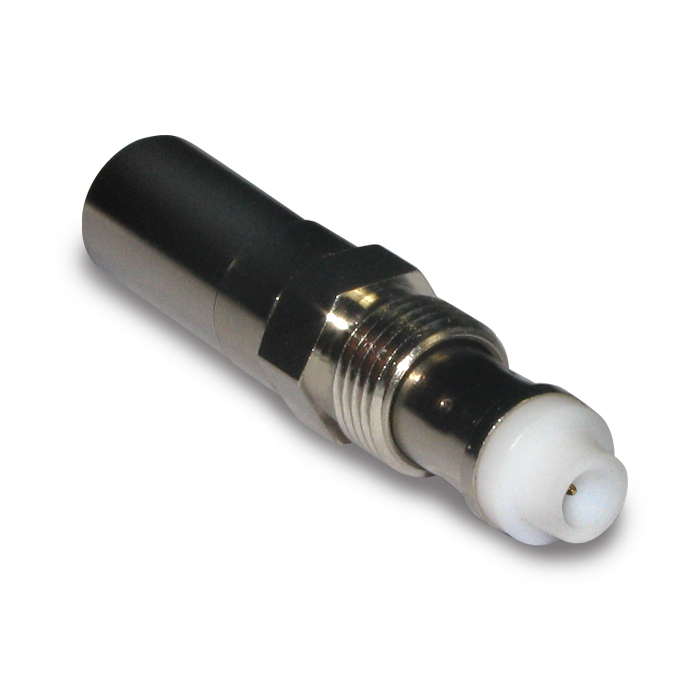

FME STRAIGHT CRIMP JACK FOR RG-8
Deep-Dive with AI
Search across all available documentation for this part.
192116
ActiveAmphenol RF
FME STRAIGHT CRIMP JACK FOR RG-8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 192116 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Belden 9258, LMR-240 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | FME |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
1921 Series
| Part | Body Finish | Dielectric Material | Mating Cycles | Mounting Type | Connector Type | Includes | Center Contact Material | Number of Ports | Contact Termination | Shield Termination | Connector Style | Housing Color | Center Contact Plating | Frequency - Max [Max] | Body Material | Features | Impedance | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Adapter Type | Adapter Series | Style | Convert From (Adapter End) | Fastening Type | Conversion Type | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Nickel | Polyoxymethylene (POM) Acetal | 500 | Free Hanging (In-Line) | Female Socket Jack | 1 Connector 1 Contact 1 Ferrule 1 Nut 1 Sleeve | Phosphor Bronze | 1 | Solder | Crimp | FME | Silver | Gold | 200 MHz | Brass | Rotating Nipple | 50 Ohms | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | ||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Free Hanging (In-Line) | Male Pin Plug | 1 Connector 1 Contact 1 Ferrule | Brass | 1 | Solder | Crimp | FME | Silver | Gold | 200 MHz | Brass | 50 Ohms | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | |||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Free Hanging (In-Line) | Female Socket Jack | Phosphor Bronze | 1 | Crimp | Crimp | FME | Silver | Gold | 1 GHz | Brass | 50 Ohms | Belden 9258 LMR-240 | -65 ░C | 165 °C | ||||||||||
Amphenol RF | Nickel | Polyoxymethylene (POM) | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -40 °C | 85 °C | BNC Plug Male Pin | Plug to Plug | BNC to FME | Straight | FME Plug Male Pin | Bayonet Lock Threaded | Between Series | Male to Male | ||||||||||
Amphenol RF | Gold | Polyoxymethylene (POM) Acetal | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -65 ░C | 165 °C | FME Plug Male Pin | Plug to Plug | FME to FME | Straight | FME Plug Male Pin | Same Series | Male to Male | |||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -65 ░C | 165 °C | FME Plug Male Pin | Plug to Plug | SMA to FME | Straight | SMA Plug Male Pin | Between Series | Male to Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.78 | |
| 10 | $ 12.22 | |||
| 25 | $ 11.75 | |||
| 50 | $ 11.28 | |||
| 100 | $ 10.65 | |||
| 250 | $ 9.71 | |||
| 500 | $ 9.08 | |||
| 1000 | $ 8.33 | |||
Description
General part information
1921 Series
FME Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
