192114
ActiveAmphenol RF

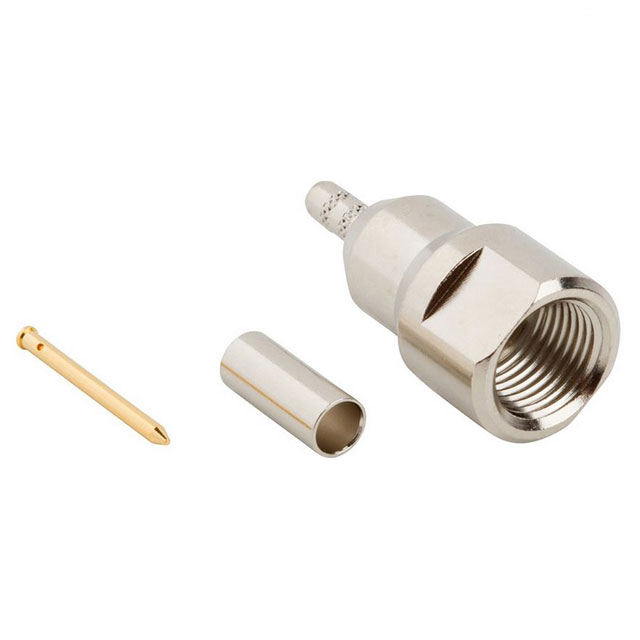

RF / COAXIAL CONNECTOR, FME COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG174, RG188A, RG316, BRASS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
192114
ActiveAmphenol RF
RF / COAXIAL CONNECTOR, FME COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG174, RG188A, RG316, BRASS
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 192114 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | FME |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 200 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
1921 Series
| Part | Body Finish | Dielectric Material | Mating Cycles | Mounting Type | Connector Type | Includes | Center Contact Material | Number of Ports | Contact Termination | Shield Termination | Connector Style | Housing Color | Center Contact Plating | Frequency - Max [Max] | Body Material | Features | Impedance | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Adapter Type | Adapter Series | Style | Convert From (Adapter End) | Fastening Type | Conversion Type | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Nickel | Polyoxymethylene (POM) Acetal | 500 | Free Hanging (In-Line) | Female Socket Jack | 1 Connector 1 Contact 1 Ferrule 1 Nut 1 Sleeve | Phosphor Bronze | 1 | Solder | Crimp | FME | Silver | Gold | 200 MHz | Brass | Rotating Nipple | 50 Ohms | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | ||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Free Hanging (In-Line) | Male Pin Plug | 1 Connector 1 Contact 1 Ferrule | Brass | 1 | Solder | Crimp | FME | Silver | Gold | 200 MHz | Brass | 50 Ohms | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | |||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Free Hanging (In-Line) | Female Socket Jack | Phosphor Bronze | 1 | Crimp | Crimp | FME | Silver | Gold | 1 GHz | Brass | 50 Ohms | Belden 9258 LMR-240 | -65 ░C | 165 °C | ||||||||||
Amphenol RF | Nickel | Polyoxymethylene (POM) | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -40 °C | 85 °C | BNC Plug Male Pin | Plug to Plug | BNC to FME | Straight | FME Plug Male Pin | Bayonet Lock Threaded | Between Series | Male to Male | ||||||||||
Amphenol RF | Gold | Polyoxymethylene (POM) Acetal | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -65 ░C | 165 °C | FME Plug Male Pin | Plug to Plug | FME to FME | Straight | FME Plug Male Pin | Same Series | Male to Male | |||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -65 ░C | 165 °C | FME Plug Male Pin | Plug to Plug | SMA to FME | Straight | SMA Plug Male Pin | Between Series | Male to Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1921 Series
FME Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
