192113

Active

Amphenol RF

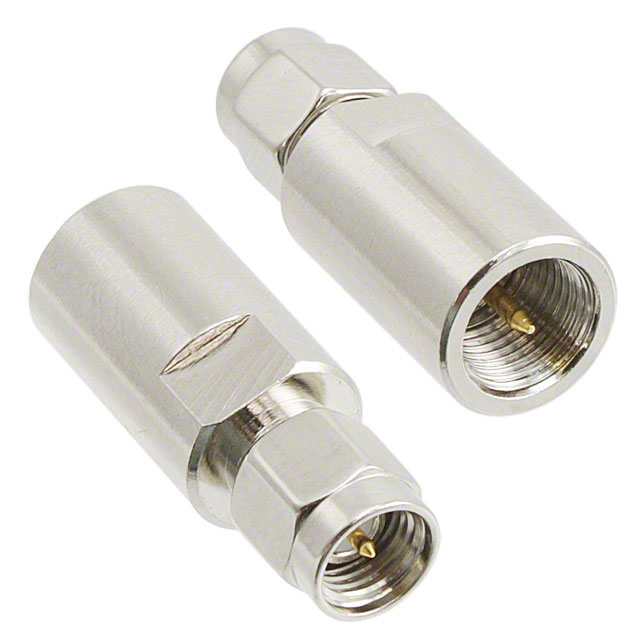

CONN ADAPT SMA PLUG TO FME PLUG

Deep-Dive with AI

Search across all available documentation for this part.

192113

Active

Amphenol RF

CONN ADAPT SMA PLUG TO FME PLUG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	192113

Adapter Series	SMA to FME
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Male Pin, FME Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

1921 Series

Part	Body Finish	Dielectric Material	Mating Cycles	Mounting Type	Connector Type	Includes	Center Contact Material	Number of Ports	Contact Termination	Shield Termination	Connector Style	Housing Color	Center Contact Plating	Frequency - Max [Max]	Body Material	Features	Impedance	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Adapter Type	Adapter Series	Style	Convert From (Adapter End)	Fastening Type	Conversion Type	Center Gender
Amphenol RF 192111	Nickel	Polyoxymethylene (POM) Acetal	500	Free Hanging (In-Line)	Female Socket Jack	1 Connector 1 Contact 1 Ferrule 1 Nut 1 Sleeve	Phosphor Bronze	1	Solder	Crimp	FME	Silver	Gold	200 MHz	Brass	Rotating Nipple	50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 192114	Nickel	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)	Male Pin Plug	1 Connector 1 Contact 1 Ferrule	Brass	1	Solder	Crimp	FME	Silver	Gold	200 MHz	Brass		50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 192116	Nickel	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)	Female Socket Jack		Phosphor Bronze	1	Crimp	Crimp	FME	Silver	Gold	1 GHz	Brass		50 Ohms	Belden 9258 LMR-240	-65 ░C	165 °C
Amphenol RF 192104	Nickel	Polyoxymethylene (POM)		Free Hanging (In-Line)			Brass						Gold	1 GHz	Brass		50 Ohms		-40 °C	85 °C	BNC Plug Male Pin	Plug to Plug	BNC to FME	Straight	FME Plug Male Pin	Bayonet Lock Threaded	Between Series	Male to Male
Amphenol RF 192103	Gold	Polyoxymethylene (POM) Acetal		Free Hanging (In-Line)			Brass						Gold	1 GHz	Brass		50 Ohms		-65 ░C	165 °C	FME Plug Male Pin	Plug to Plug	FME to FME	Straight	FME Plug Male Pin		Same Series	Male to Male
Amphenol RF 192113	Nickel	Polytetrafluoroethylene (PTFE)		Free Hanging (In-Line)			Brass						Gold	1 GHz	Brass		50 Ohms		-65 ░C	165 °C	FME Plug Male Pin	Plug to Plug	SMA to FME	Straight	SMA Plug Male Pin		Between Series	Male to Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.85
		10	$ 7.96
		25	$ 7.50
		50	$ 7.31
		100	$ 7.12
		250	$ 6.35
		500	$ 5.96
		1000	$ 5.27

Description

General part information

1921 Series

Adapter Coaxial Connector SMA Plug, Male Pin To FME Plug, Male Pin 50 Ohms
