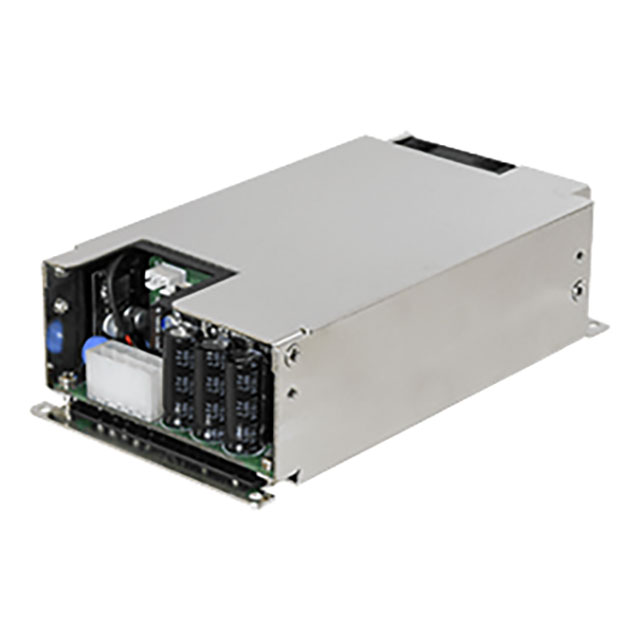

VMS-450B-54-CFS
ActiveCUI Inc.
AC/DC POWER SUPPLY SINGLE-OUT 54V 8.3A 450W 17-PIN BOX
Deep-Dive with AI
Search across all available documentation for this part.
VMS-450B-54-CFS
ActiveCUI Inc.
AC/DC POWER SUPPLY SINGLE-OUT 54V 8.3A 450W 17-PIN BOX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VMS-450B-54-CFS |
|---|---|
| Applications | Medical |
| Approval Agency | TUV, CB Scheme, EN, IEC, UL |
| Current - Output 1 | 8.3 A |
| Efficiency | 92 % |
| Features | PFC, Universal Input, Standby Output, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 448 W |
| Size / Dimension [x] | 5.83 in |
| Size / Dimension [x] | 148.1 mm |
| Size / Dimension [y] | 80 mm |
| Size / Dimension [y] | 3.15 in |
| Size / Dimension [z] | 1.6 in |
| Size / Dimension [z] | 40.6 mm |
| Standard Number | 61000-3-2, 61000-3-3, 55011 Class B, 60601-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 54 V |
VMS-450 Series
| Part | Approval Agency | Current - Output 1 | Power (Watts) | Voltage - Isolation | Voltage - Output 1 | Features | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Standard Number | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Type | Number of Outputs | Mounting Type | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | CB Scheme EN IEC TUV UL | 8.3 A | 448 W | 4000 V | 54 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 5.83 in | 148.1 mm | 1.6 in | 80 mm | 3.15 in | 40.6 mm | Enclosed | 1 | Chassis Mount | 92 % | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 23.7 A | 450 W | 4000 V | 19 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 127 mm | 76.2 mm | Open Frame | 1 | Chassis Mount | 92 % | 5 in | 3 " | 32 mm | 1.26 in | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 9.4 A | 451 W | 4000 V | 48 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 127 mm | 50 mm | 86.6 mm | Enclosed | 1 | Chassis Mount | 91 % | 5 in | 3.41 " | 1.97 " | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 37.5 A | 450 W | 4000 V | 12 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 127 mm | 50 mm | 86.6 mm | Enclosed | 1 | Chassis Mount | 89 % | 5 in | 3.41 " | 1.97 " | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 9.4 A | 451 W | 4000 V | 48 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 127 mm | 50 mm | 86.6 mm | Enclosed | 1 | Chassis Mount | 91 % | 5 in | 3.41 " | 1.97 " | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 37.5 A | 450 W | 4000 V | 12 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 127 mm | 50 mm | 86.6 mm | Enclosed | 1 | Chassis Mount | 89 % | 5 in | 3.41 " | 1.97 " | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 18.8 A | 451 W | 4000 V | 24 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 127 mm | 50 mm | 86.6 mm | Enclosed | 1 | Chassis Mount | 91 % | 5 in | 3.41 " | 1.97 " | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 37.5 A | 450 W | 4000 V | 12 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 5.83 in | 148.1 mm | 1.6 in | 80 mm | 3.15 in | 40.6 mm | Enclosed | 1 | Chassis Mount | 89 % | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 30 A | 450 W | 4000 V | 15 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 5.83 in | 148.1 mm | 1.6 in | 80 mm | 3.15 in | 40.6 mm | Enclosed | 1 | Chassis Mount | 89 % | ||||
CUI Inc. | CB Scheme EN IEC TUV UL | 12.5 A | 450 W | 4000 V | 36 V | PFC Remote On/Off Standby Output Universal Input | Medical | 240 VAC | 100 VAC | -20 °C | 70 °C | 55011 Class B 60601-1 61000-3-2 61000-3-3 | 127 mm | 50 mm | 86.6 mm | Enclosed | 1 | Chassis Mount | 90 % | 5 in | 3.41 " | 1.97 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 24 | $ 182.71 | |
| 48 | $ 170.53 | |||
Description
General part information
VMS-450 Series
Enclosed AC DC Converters 1 Output 54V 100 ~ 240 VAC Input
