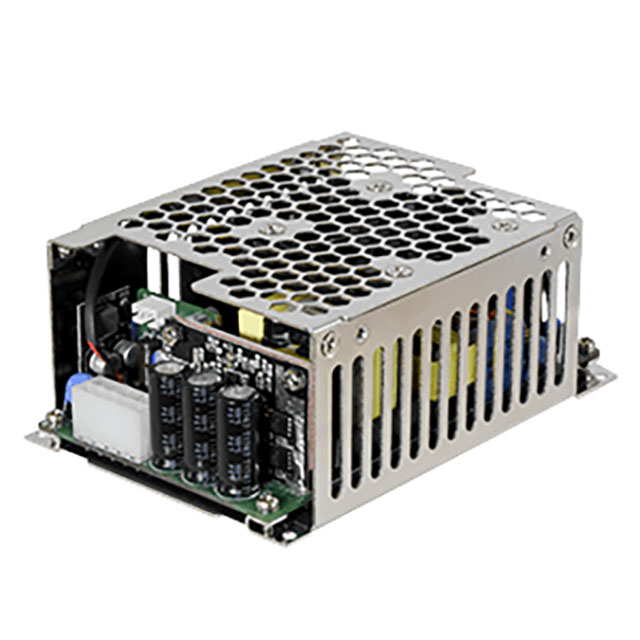

Specification	VMS-450B-12-CF

Applications	Medical
Approval Agency	UL, EN, TUV, CB Scheme, IEC
Current - Output 1	37.5 A
Efficiency	89 %
Features	Universal Input, PFC, Standby Output, Remote On/Off
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	450 W
Size / Dimension Height	1.97 in
Size / Dimension Length	5 in
Size / Dimension Width	3.41 in
Standard Number	60601-1, 61000-3-3, 61000-3-2, 55011 Class B
Type	Enclosed
Voltage - Input (AC) Maximum	240 VAC
Voltage - Input (AC) Minimum	100 VAC
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V

VMS-450 Series

Part	Mounting Type	Voltage - Output 1	Type	Standard Number	Features	Voltage - Isolation	Applications	Power (Watts)	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Current - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Number of Outputs	Efficiency	Approval Agency
CUI Inc. VMS-450B-54-CFS	Chassis Mount	54 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	448 W	240 VAC	100 VAC	8.3 A	70 °C	-20 °C	3.15 in	1.6 in	5.83 in	1	92 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-19	Chassis Mount	19 V	Open Frame	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	450 W	240 VAC	100 VAC	23.7 A	70 °C	-20 °C	3 in	1.26 in	5 in	1	92 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-48-CNF	Chassis Mount	48 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	451 W	240 VAC	100 VAC	9.4 A	70 °C	-20 °C	3.41 in	1.97 in	5 in	1	91 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-12-CNF	Chassis Mount	12 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	450 W	240 VAC	100 VAC	37.5 A	70 °C	-20 °C	3.41 in	1.97 in	5 in	1	89 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-48-CF	Chassis Mount	48 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	451 W	240 VAC	100 VAC	9.4 A	70 °C	-20 °C	3.41 in	1.97 in	5 in	1	91 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-12-CF	Chassis Mount	12 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	450 W	240 VAC	100 VAC	37.5 A	70 °C	-20 °C	3.41 in	1.97 in	5 in	1	89 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-24-CF	Chassis Mount	24 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	451 W	240 VAC	100 VAC	18.8 A	70 °C	-20 °C	3.41 in	1.97 in	5 in	1	91 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-12-CFS	Chassis Mount	12 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	450 W	240 VAC	100 VAC	37.5 A	70 °C	-20 °C	3.15 in	1.6 in	5.83 in	1	89 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-15-CFS	Chassis Mount	15 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	450 W	240 VAC	100 VAC	30 A	70 °C	-20 °C	3.15 in	1.6 in	5.83 in	1	89 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-36-CNF	Chassis Mount	36 V	Enclosed	55011 Class B 60601-1 61000-3-2 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 Vpk	Medical	450 W	240 VAC	100 VAC	12.5 A	70 °C	-20 °C	3.41 in	1.97 in	5 in	1	90 %	CB Scheme EN IEC TUV UL
