5602-22-0142A-100

Active

3M (TC)

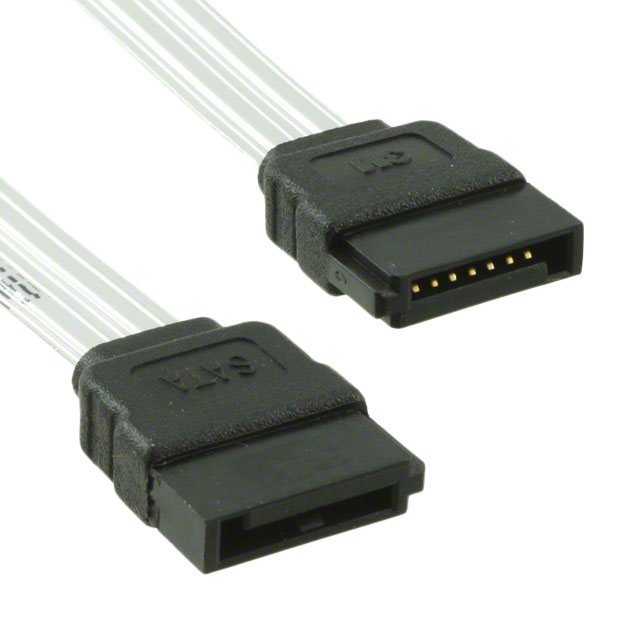

SATA 7-PIN RIBBON TWINAX CABLE ASSEMBLY STRAIGHT TO STRAIGHT WITH LATCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3M System Integrator Program Case Study

5602-22-0142A-100

Active

3M (TC)

SATA 7-PIN RIBBON TWINAX CABLE ASSEMBLY STRAIGHT TO STRAIGHT WITH LATCH

Deep-Dive with AI

DocumentsDatasheet 3M System Integrator Program Case Study

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5602-22-0142A-100

Cable Connectors	SATA
Cable Type	Twin Axial, Flat
Color	Silver
Connector Type	Receptacle to Receptacle
Fastening Type	Push-Pull
Gender	Female to Female
Length	102 mm
Length	4.106 "
Length [custom]	0.335 ft
Number of Positions	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shielding	Shielded
Usage	Internal
Wire Gauge	30 AWG

5602 Series

Part	Cable Connectors	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Length [custom]	Length	Length	Color	Gender	Shielding	Wire Gauge	Connector Type	Fastening Type	Cable Type	Number of Positions	Length [x]	Length [x]	Length
3M (TC) 5602-22-0142A-100	SATA	-20 C	80 C	Internal	0.335 ft	102 mm	4.106 "	Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Push-Pull	Flat Twin Axial	7
3M (TC) 5602-22-0142A-700	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Push-Pull	Flat Twin Axial	7	2.3 ft	700 mm
3M (TC) 5602-44-0142A-900	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7	2.95 ft	900 mm
3M (TC) 5602-44-0142A-100	SATA	-20 C	80 C	Internal	0.335 ft	102 mm	4.106 "	Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7
3M (TC) 5602-33-0142A-500	SATA			Internal				Silver	Female to Female		30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7	1.64 ft	500 mm
3M (TC) 5602-34-0142A-500	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle Right Angle	Latch Lock	Flat Twin Axial	7	1.64 ft	500 mm
3M (TC) 5602-44-0142A-000	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7	3.28 ft	1 m
3M (TC) 5602-44-0142A-600	SATA	-20 C	80 C	Internal		600 mm		Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7			1.96 ft
3M (TC) 5602-11-0142A-500	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle Right Angle Right Angle to Receptacle	Push-Pull	Flat Twin Axial	7	1.64 ft	500 mm
3M (TC) 5602-44-0142A-700	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7	2.3 ft	700 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.86
Newark	Each	1000	$ 5.98

Description

General part information

5602 Series

7 Position SATA Receptacle to Receptacle 0.335' (102.00mm, 4.106") Silver Shielded
