5602-44-0142A-700

Active

3M (TC)

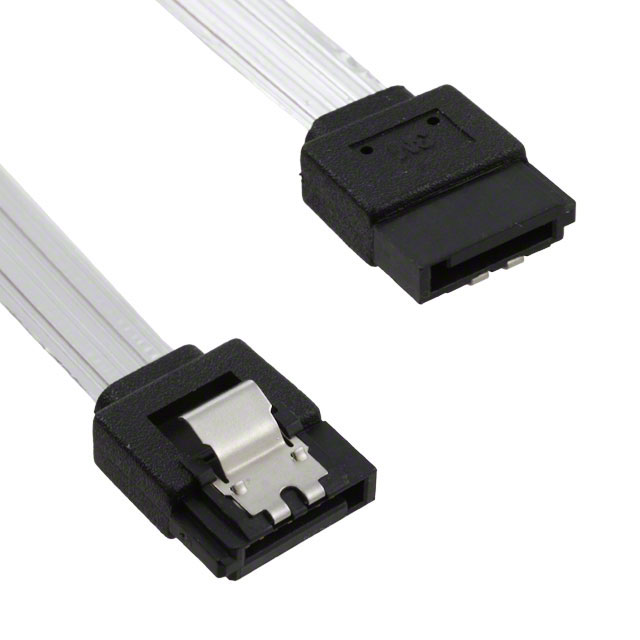

COMPUTER CABLE, SATA PLUG, SATA PLUG, 2.3 FT, 700 MM, SILVER

Deep-Dive with AI

Search across all available documentation for this part.

Documents3M System Integrator Program Case Study Datasheet +2

5602-44-0142A-700

Active

3M (TC)

COMPUTER CABLE, SATA PLUG, SATA PLUG, 2.3 FT, 700 MM, SILVER

Deep-Dive with AI

Documents3M System Integrator Program Case Study Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5602-44-0142A-700

Cable Connectors	SATA
Cable Type	Twin Axial, Flat
Color	Silver
Connector Type	Receptacle to Receptacle
Fastening Type	Latch Lock
Gender	Female to Female
Length [x]	2.3 ft
Length [x]	700 mm
Number of Positions	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shielding	Shielded
Usage	Internal
Wire Gauge	30 AWG

5602 Series

Part	Cable Connectors	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Length [custom]	Length	Length	Color	Gender	Shielding	Wire Gauge	Connector Type	Fastening Type	Cable Type	Number of Positions	Length [x]	Length [x]	Length
3M (TC) 5602-22-0142A-100	SATA	-20 C	80 C	Internal	0.335 ft	102 mm	4.106 "	Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Push-Pull	Flat Twin Axial	7
3M (TC) 5602-22-0142A-700	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Push-Pull	Flat Twin Axial	7	2.3 ft	700 mm
3M (TC) 5602-44-0142A-900	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7	2.95 ft	900 mm
3M (TC) 5602-44-0142A-100	SATA	-20 C	80 C	Internal	0.335 ft	102 mm	4.106 "	Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7
3M (TC) 5602-33-0142A-500	SATA			Internal				Silver	Female to Female		30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7	1.64 ft	500 mm
3M (TC) 5602-34-0142A-500	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle Right Angle	Latch Lock	Flat Twin Axial	7	1.64 ft	500 mm
3M (TC) 5602-44-0142A-000	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7	3.28 ft	1 m
3M (TC) 5602-44-0142A-600	SATA	-20 C	80 C	Internal		600 mm		Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7			1.96 ft
3M (TC) 5602-11-0142A-500	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle Right Angle Right Angle to Receptacle	Push-Pull	Flat Twin Axial	7	1.64 ft	500 mm
3M (TC) 5602-44-0142A-700	SATA	-20 C	80 C	Internal				Silver	Female to Female	Shielded	30 AWG	Receptacle to Receptacle	Latch Lock	Flat Twin Axial	7	2.3 ft	700 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.19
		10	$ 8.27
		25	$ 7.79
		50	$ 7.59
		100	$ 7.39
		250	$ 6.60
		500	$ 6.20
		1000	$ 5.48
Newark	Each	500	$ 6.68
		1000	$ 5.84

Description

General part information

5602 Series

7 Position SATA Receptacle to Receptacle 2.30' (700.00mm) Silver Shielded

Documents

Technical documentation and resources

3M System Integrator Program Case Study

Datasheet

Technical Data Sheet EN

Datasheet

Technical Data Sheet EN

Datasheet
