5602-11-0142A-500
Unknown3M (TC)
XP200020632 5602-11-0142A-500=ASSY/TWINAX/INT/SATA/30AWG/500MM
Deep-Dive with AI
Search across all available documentation for this part.
5602-11-0142A-500
Unknown3M (TC)
XP200020632 5602-11-0142A-500=ASSY/TWINAX/INT/SATA/30AWG/500MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5602-11-0142A-500 |
|---|---|
| Cable Connectors | SATA |
| Cable Type | Twin Axial, Flat |
| Color | Silver |
| Connector Type | Receptacle, Right Angle to Receptacle, Right Angle |
| Fastening Type | Push-Pull |
| Gender | Female to Female |
| Length [x] | 1.64 ft |
| Length [x] | 500 mm |
| Number of Positions | 7 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shielding | Shielded |
| Usage | Internal |
| Wire Gauge | 30 AWG |
5602 Series
| Part | Cable Connectors | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Length [custom] | Length | Length | Color | Gender | Shielding | Wire Gauge | Connector Type | Fastening Type | Cable Type | Number of Positions | Length [x] | Length [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | SATA | -20 C | 80 C | Internal | 0.335 ft | 102 mm | 4.106 " | Silver | Female to Female | Shielded | 30 AWG | Receptacle to Receptacle | Push-Pull | Flat Twin Axial | 7 | |||
3M (TC) | SATA | -20 C | 80 C | Internal | Silver | Female to Female | Shielded | 30 AWG | Receptacle to Receptacle | Push-Pull | Flat Twin Axial | 7 | 2.3 ft | 700 mm | ||||
3M (TC) | SATA | -20 C | 80 C | Internal | Silver | Female to Female | Shielded | 30 AWG | Receptacle to Receptacle | Latch Lock | Flat Twin Axial | 7 | 2.95 ft | 900 mm | ||||
3M (TC) | SATA | -20 C | 80 C | Internal | 0.335 ft | 102 mm | 4.106 " | Silver | Female to Female | Shielded | 30 AWG | Receptacle to Receptacle | Latch Lock | Flat Twin Axial | 7 | |||
3M (TC) | SATA | Internal | Silver | Female to Female | 30 AWG | Receptacle to Receptacle | Latch Lock | Flat Twin Axial | 7 | 1.64 ft | 500 mm | |||||||
3M (TC) | SATA | -20 C | 80 C | Internal | Silver | Female to Female | Shielded | 30 AWG | Receptacle to Receptacle Right Angle | Latch Lock | Flat Twin Axial | 7 | 1.64 ft | 500 mm | ||||
3M (TC) | SATA | -20 C | 80 C | Internal | Silver | Female to Female | Shielded | 30 AWG | Receptacle to Receptacle | Latch Lock | Flat Twin Axial | 7 | 3.28 ft | 1 m | ||||
3M (TC) | SATA | -20 C | 80 C | Internal | 600 mm | Silver | Female to Female | Shielded | 30 AWG | Receptacle to Receptacle | Latch Lock | Flat Twin Axial | 7 | 1.96 ft | ||||
3M (TC) | SATA | -20 C | 80 C | Internal | Silver | Female to Female | Shielded | 30 AWG | Receptacle Right Angle Right Angle to Receptacle | Push-Pull | Flat Twin Axial | 7 | 1.64 ft | 500 mm | ||||
3M (TC) | SATA | -20 C | 80 C | Internal | Silver | Female to Female | Shielded | 30 AWG | Receptacle to Receptacle | Latch Lock | Flat Twin Axial | 7 | 2.3 ft | 700 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5602 Series

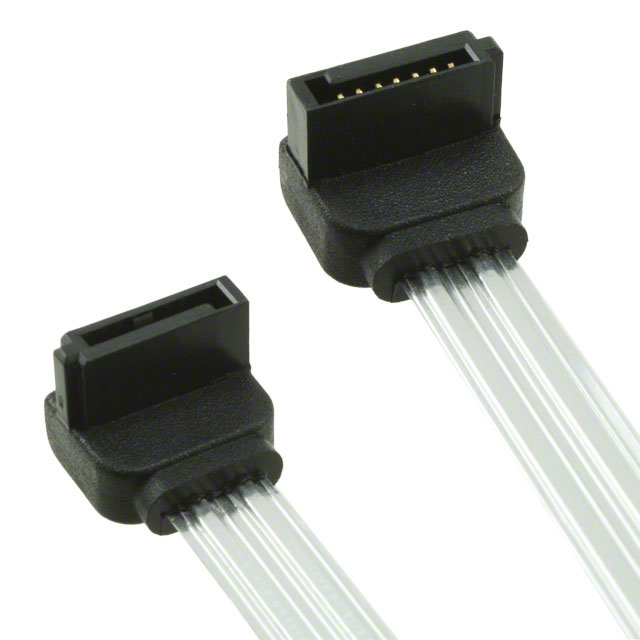

7 Position SATA Receptacle, Right Angle to Receptacle, Right Angle 1.64' (500.00mm) Silver Shielded
