2M801-007-16NF6-7SA

Active

Amphenol Aerospace Operations

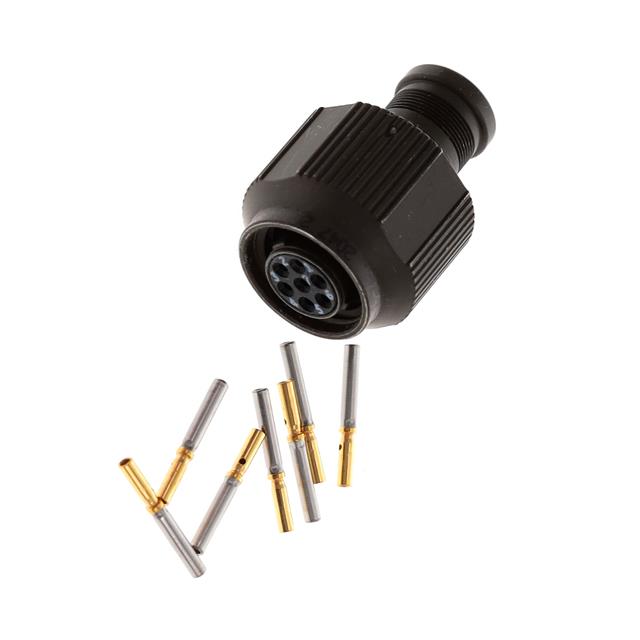

2M801 7C 7#23 SKT PLUG OM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2M801-007-16NF6-7SA

Active

Amphenol Aerospace Operations

2M801 7C 7#23 SKT PLUG OM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M801-007-16NF6-7SA	2M801-007 Series

Applications	-	Aerospace, Military, Industrial
Cable Opening	-	20.45 mm
Cable Opening	-	0.805 in
Cable Opening [custom]	7.37 mm	7.37 - 21.59 mm
Cable Opening [custom]	0.29 in	0.29 - 0.85 in
Color	Olive Drab	Olive Drab, Silver, Black
Connector Type	Female Sockets, Plug	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 - 13 A
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Self Locking
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, Environment Resistant
Insert Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	7	2 - 85
Number of Positions	-	16
Operating Temperature [Max]	150 °C	150 - 347 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Olive Drab Cadmium	Olive Drab Cadmium, Electroless Nickel, Olive Drab Zinc Nickel, Black Zinc Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	-	13
Shell Size - Insert	-	8-2
Shell Size - Insert [Max]	7	6 - 235
Shell Size - Insert [Min]	6	4 - 17
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

2M801-007 Series

2M801 85C 85#23 PIN PLUG OM

Part	Color	Termination	Shell Finish	Shell Material	Contact Material	Mounting Type	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Shielding	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Features	Orientation	Applications	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Number of Positions
Amphenol Aerospace Operations 2M801-007-16NF17-85PA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	85	0.85 in	21.59 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	85	17	Gold	Shielded	Male Pins, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A
Amphenol Aerospace Operations 2M801-007-26M7-10SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	10	0.39 in	9.91 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A			Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut, Self Locking	A
Amphenol Aerospace Operations 2M801-007-16M8-13SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	13	0.445 in	11.3 mm	Polyphenylene Sulfide (PPS)	Environment Resistant, IP67 - Dust Tight, Waterproof	-65 ░C	150 °C, 347 °F	5 A	13	8	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A	Aerospace, Industrial, Military	13
Amphenol Aerospace Operations 2M801-007-16ZN6-4SA	Olive Drab	Crimp	Olive Drab Zinc Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	4	0.29 in	7.37 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	6	4	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A
Amphenol Aerospace Operations 2M801-007-16M16-235SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	35			Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	7.5 A	235	16	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A			20.45 mm	0.805 in
Amphenol Aerospace Operations 2M801-007-16M8-2SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	2	0.445 in	11.3 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	13 A			Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A					8-2
Amphenol Aerospace Operations 2M801-007-26NF8-28SA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	8	0.445 in	11.3 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	7.5 A	28	8	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut, Self Locking	A
Amphenol Aerospace Operations 2M801-007-26ZNU6-4PA	Black	Crimp	Black Zinc Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	4	0.29 in	7.37 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	6	4	Gold	Shielded	Male Pins, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut, Self Locking	A
Amphenol Aerospace Operations 2M801-007-16NF6-7SA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	7	0.29 in	7.37 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	7	6	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A
Amphenol Aerospace Operations 2M801-007-16NF9-19PA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)		0.5 in	12.7 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	19	9	Gold	Shielded	Male Pins, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A						16
