2M801-007-16NF17-85PA

Active

Amphenol Aerospace Operations

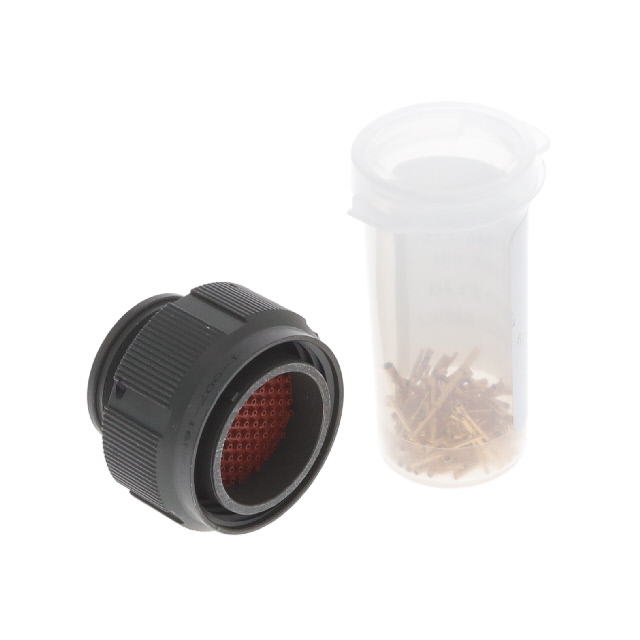

2M801 85C 85#23 PIN PLUG OM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2M801-007-16NF17-85PA

Active

Amphenol Aerospace Operations

2M801 85C 85#23 PIN PLUG OM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 439.62
		10	$ 346.31
		25	$ 316.93

Description

General part information

2M801-007 Series

85 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M801-007-16NF17-85PA	2M801-007 Series

Applications	-	Aerospace, Military, Industrial
Cable Opening	-	20.45 mm
Cable Opening	-	0.805 in
Cable Opening [custom]	0.85 in	0.29 - 0.85 in
Cable Opening [custom]	21.59 mm	7.37 - 21.59 mm
Color	Olive Drab	Olive Drab, Silver, Black
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 - 13 A
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Self Locking
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, Environment Resistant
Insert Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	85	2 - 85
Number of Positions	-	16
Operating Temperature [Max]	150 °C	150 - 347 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Olive Drab Cadmium	Olive Drab Cadmium, Electroless Nickel, Olive Drab Zinc Nickel, Black Zinc Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	-	13
Shell Size - Insert	-	8-2
Shell Size - Insert [Max]	85	6 - 235
Shell Size - Insert [Min]	17	4 - 17
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

2M801-007 Series

2M801 85C 85#23 PIN PLUG OM

Part	Color	Termination	Shell Finish	Shell Material	Contact Material	Mounting Type	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Shielding	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Features	Orientation	Applications	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Number of Positions
Amphenol Aerospace Operations 2M801-007-16NF17-85PA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	85	0.85 in	21.59 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	85	17	Gold	Shielded	Male Pins, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A
Amphenol Aerospace Operations 2M801-007-26M7-10SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	10	0.39 in	9.91 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A			Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut, Self Locking	A
Amphenol Aerospace Operations 2M801-007-16M8-13SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	13	0.445 in	11.3 mm	Polyphenylene Sulfide (PPS)	Environment Resistant, IP67 - Dust Tight, Waterproof	-65 ░C	150 °C, 347 °F	5 A	13	8	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A	Aerospace, Industrial, Military	13
Amphenol Aerospace Operations 2M801-007-16ZN6-4SA	Olive Drab	Crimp	Olive Drab Zinc Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	4	0.29 in	7.37 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	6	4	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A
Amphenol Aerospace Operations 2M801-007-16M16-235SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	35			Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	7.5 A	235	16	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A			20.45 mm	0.805 in
Amphenol Aerospace Operations 2M801-007-16M8-2SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	2	0.445 in	11.3 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	13 A			Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A					8-2
Amphenol Aerospace Operations 2M801-007-26NF8-28SA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	8	0.445 in	11.3 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	7.5 A	28	8	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut, Self Locking	A
Amphenol Aerospace Operations 2M801-007-26ZNU6-4PA	Black	Crimp	Black Zinc Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	4	0.29 in	7.37 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	6	4	Gold	Shielded	Male Pins, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut, Self Locking	A
Amphenol Aerospace Operations 2M801-007-16NF6-7SA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	7	0.29 in	7.37 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	7	6	Gold	Shielded	Female Sockets, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A
Amphenol Aerospace Operations 2M801-007-16NF9-19PA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)		0.5 in	12.7 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight, Waterproof	-65 ░C	150 °C	5 A	19	9	Gold	Shielded	Male Pins, Plug	1.27 µm	50 µin	Metal	Backshell, Coupling Nut	A						16
