Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2M801-007-16M8-13SA | 2M801-007 Series |
|---|---|---|
| Applications | Aerospace, Military, Industrial | Aerospace, Military, Industrial |
| Cable Opening | - | 20.45 mm |
| Cable Opening | - | 0.805 in |
| Cable Opening [custom] | 11.3 mm | 7.37 - 21.59 mm |
| Cable Opening [custom] | 0.445 in | 0.29 - 0.85 in |
| Color | Silver | Olive Drab, Silver, Black |
| Connector Type | Female Sockets, Plug | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.27 µm | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 5 A | 5 - 13 A |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell, Self Locking |
| Ingress Protection | Environment Resistant, IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof, Environment Resistant |
| Insert Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 13 | 2 - 85 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 347 °F, 150 °C | 150 - 347 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Olive Drab Cadmium, Electroless Nickel, Olive Drab Zinc Nickel, Black Zinc Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 13 | 13 |
| Shell Size - Insert | - | 8-2 |
| Shell Size - Insert [Max] | 13 | 6 - 235 |
| Shell Size - Insert [Min] | 8 | 4 - 17 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
2M801-007 Series
2M801 85C 85#23 PIN PLUG OM
| Part | Color | Termination | Shell Finish | Shell Material | Contact Material | Mounting Type | Number of Positions | Cable Opening [custom] | Cable Opening [custom] | Insert Material | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Contact Finish - Mating | Shielding | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Features | Orientation | Applications | Shell Size - Insert | Cable Opening [diameter] | Cable Opening [diameter] | Shell Size - Insert | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations 2M801-007-16NF17-85PA | Olive Drab | Crimp | Olive Drab Cadmium | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 85 | 0.85 in | 21.59 mm | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 5 A | 85 | 17 | Gold | Shielded | Male Pins, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut | A | ||||||
Amphenol Aerospace Operations 2M801-007-26M7-10SA | Silver | Crimp | Electroless Nickel | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 10 | 0.39 in | 9.91 mm | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 5 A | Gold | Shielded | Female Sockets, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut, Self Locking | A | ||||||||
Amphenol Aerospace Operations 2M801-007-16M8-13SA | Silver | Crimp | Electroless Nickel | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 13 | 0.445 in | 11.3 mm | Polyphenylene Sulfide (PPS) | Environment Resistant, IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C, 347 °F | 5 A | 13 | 8 | Gold | Shielded | Female Sockets, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut | A | Aerospace, Industrial, Military | 13 | ||||
Amphenol Aerospace Operations 2M801-007-16ZN6-4SA | Olive Drab | Crimp | Olive Drab Zinc Nickel | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 4 | 0.29 in | 7.37 mm | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 5 A | 6 | 4 | Gold | Shielded | Female Sockets, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut | A | ||||||
Amphenol Aerospace Operations 2M801-007-16M16-235SA | Silver | Crimp | Electroless Nickel | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 35 | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 7.5 A | 235 | 16 | Gold | Shielded | Female Sockets, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut | A | 20.45 mm | 0.805 in | ||||||
Amphenol Aerospace Operations 2M801-007-16M8-2SA | Silver | Crimp | Electroless Nickel | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 2 | 0.445 in | 11.3 mm | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 13 A | Gold | Shielded | Female Sockets, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut | A | 8-2 | |||||||
Amphenol Aerospace Operations 2M801-007-26NF8-28SA | Olive Drab | Crimp | Olive Drab Cadmium | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 8 | 0.445 in | 11.3 mm | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 7.5 A | 28 | 8 | Gold | Shielded | Female Sockets, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut, Self Locking | A | ||||||
Amphenol Aerospace Operations 2M801-007-26ZNU6-4PA | Black | Crimp | Black Zinc Nickel | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 4 | 0.29 in | 7.37 mm | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 5 A | 6 | 4 | Gold | Shielded | Male Pins, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut, Self Locking | A | ||||||
Amphenol Aerospace Operations 2M801-007-16NF6-7SA | Olive Drab | Crimp | Olive Drab Cadmium | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 7 | 0.29 in | 7.37 mm | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 5 A | 7 | 6 | Gold | Shielded | Female Sockets, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut | A | ||||||
Amphenol Aerospace Operations 2M801-007-16NF9-19PA | Olive Drab | Crimp | Olive Drab Cadmium | Aluminum Alloy | Copper Alloy | Free Hanging (In-Line) | 0.5 in | 12.7 mm | Polyphenylene Sulfide (PPS) | IP67 - Dust Tight, Waterproof | -65 ░C | 150 °C | 5 A | 19 | 9 | Gold | Shielded | Male Pins, Plug | 1.27 µm | 50 µin | Metal | Backshell, Coupling Nut | A | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 218.75 | |
| 1 | $ 257.38 | |||
| 10 | $ 196.51 | |||
| 10 | $ 209.12 | |||
| 25 | $ 176.10 | |||
| 50 | $ 152.09 | |||
| 100 | $ 128.69 | |||
Description
General part information
2M801-007 Series

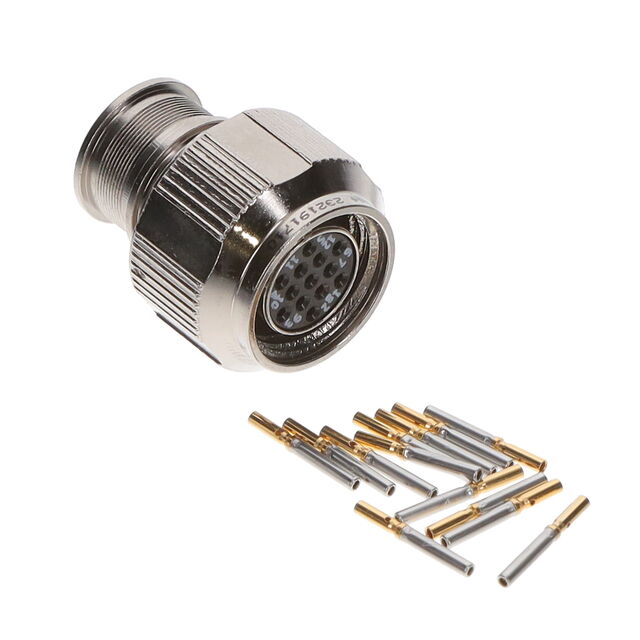

13 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
