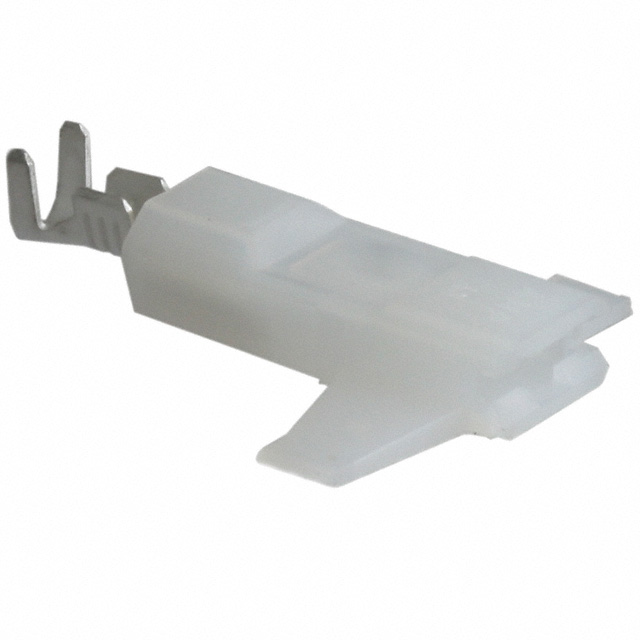

520973-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-POD 187 ASSY REC 20-16 AWG TPBR
Deep-Dive with AI
Search across all available documentation for this part.
520973-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-POD 187 ASSY REC 20-16 AWG TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 520973-2 |
|---|---|
| Color | Natural |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [Max] | 3.3 mm |
| Insulation Diameter [Max] | 0.13 in |
| Insulation Diameter [Min] | 2.29 mm |
| Insulation Diameter [Min] | 0.09 in |
| Length - Overall | 27.56 mm |
| Length - Overall [x] | 1.085 " |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.22 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 2500 | $ 0.14 | ||
| 5000 | $ 0.13 | |||
| 12500 | $ 0.12 | |||
| 25000 | $ 0.12 | |||
Description
General part information
Ultra-Pod 187 Series
Quick Disconnect Receptacle, 20 – 16 AWG, .51 – 1.31 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Pod 187
