521598-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-POD 187 ASY REC 22-18 TPBR
Deep-Dive with AI
Search across all available documentation for this part.
521598-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-POD 187 ASY REC 22-18 TPBR
Technical Specifications
Parameters and characteristics for this part
| Specification | 521598-2 |
|---|---|
| Color | Natural |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [Max] [diameter] | 2.79 mm |
| Insulation Diameter [Max] [diameter] | 0.11 " |
| Insulation Diameter [Min] [diameter] | 1.52 mm |
| Insulation Diameter [Min] [diameter] | 0.06 in |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Ultra-Pod 187 Series
| Part | Gender | Contact Material | Terminal Type | Mounting Type | Length - Overall | Length - Overall [x] | Insulation | Tab Thickness | Tab Thickness | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Color | Tab Width | Tab Width | Wire Gauge [Min] | Wire Gauge [Max] | Termination | Contact Finish | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Female | Brass | Standard | Free Hanging (In-Line) | 27.56 mm | 1.085 " | Fully Insulated | 0.032 in | 0.81 mm | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | Natural | 4.75 mm | 0.187 in | 16 AWG | 20 AWG | Crimp | |||||||
TE Connectivity Raychem Cable Protection | Female | Brass | Standard | Free Hanging (In-Line) | 27.56 mm | 1.085 " | Fully Insulated | 0.032 in | 0.81 mm | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | Black | 4.75 mm | 0.187 in | 16 AWG | 20 AWG | Crimp | |||||||
TE Connectivity Raychem Cable Protection | Female | Brass | Standard | Free Hanging (In-Line) | 27.56 mm | 1.085 " | Fully Insulated | 0.032 in | 0.81 mm | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | Natural | 4.75 mm | 0.187 in | 16 AWG | 20 AWG | Crimp | Tin | ||||||
TE Connectivity Raychem Cable Protection | Female | Brass | Angled - 90° Flag | Free Hanging (In-Line) Right Angle | Fully Insulated | 0.032 in | 0.81 mm | 3.81 mm | 2.79 mm | Natural | 4.75 mm | 0.187 in | 14 AWG | 20 AWG | Crimp | Tin | 0.11 in | 0.15 in | ||||||||
TE Connectivity Raychem Cable Protection | Female | Brass | Standard | Free Hanging (In-Line) | 27.56 mm | 1.085 " | Mating End Insulated | 0.02 " | 0.51 mm | White | 4.75 mm | 0.187 in | 16 AWG | 20 AWG | Crimp | Tin | 0.105 in | 2.67 mm | 5.33 mm | 0.21 in | ||||||
TE Connectivity Raychem Cable Protection | Female | Brass | Angled - 90° Flag | Free Hanging (In-Line) Right Angle | Fully Insulated | 0.02 " | 0.51 mm | 3.81 mm | 2.79 mm | Natural | 4.75 mm | 0.187 in | 14 AWG | 18 AWG | Crimp | Tin | 0.11 in | 0.15 in | ||||||||
TE Connectivity Raychem Cable Protection | Female | Brass | Angled - 90° Flag | Free Hanging (In-Line) Right Angle | Fully Insulated | 0.032 in | 0.81 mm | Natural | 4.75 mm | 0.187 in | 17.5 AWG | 22 AWG | Crimp | Tin | 0.06 in | 1.52 mm | 2.79 mm | 0.11 " | ||||||||
TE Connectivity Raychem Cable Protection | Female | Brass | Standard | Free Hanging (In-Line) | 27.56 mm | 1.085 " | Fully Insulated | 0.02 " | 0.51 mm | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | Natural | 4.75 mm | 0.187 in | 16 AWG | 20 AWG | Crimp | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Ultra-Pod 187 Series

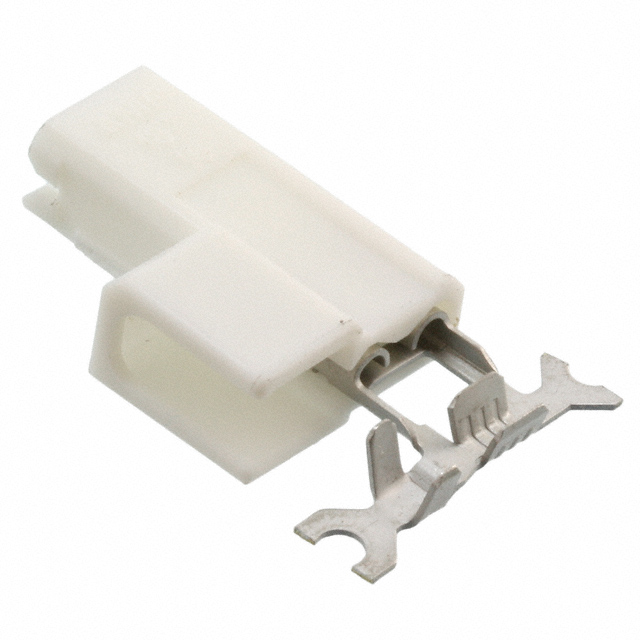

Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 4.75 mm [.187 in] Tab Width, Flag, Brass, Tin Plating, Strip/Reel, Ultra-Pod 187
