521597-2

Active

TE Connectivity Raychem Cable Protection

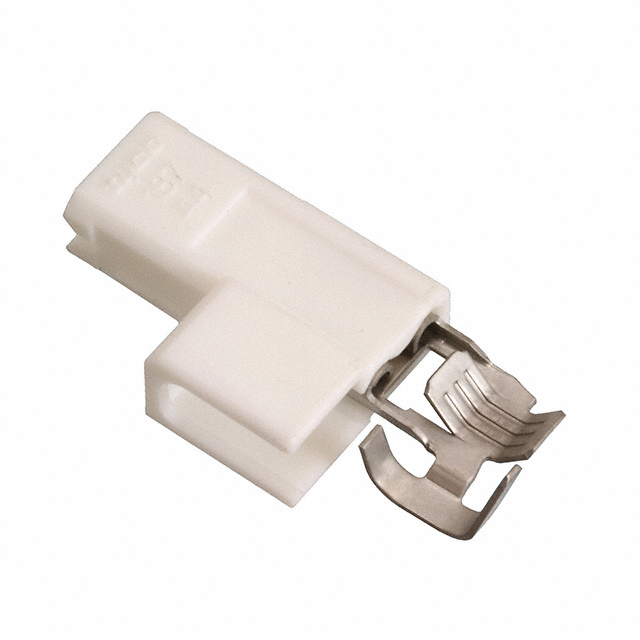

ULTRA-POD 187 ASY REC 18-14 TPBR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Ultra-Fast and Ultra Fast Plus +8

521597-2

Active

TE Connectivity Raychem Cable Protection

ULTRA-POD 187 ASY REC 18-14 TPBR

Deep-Dive with AI

DocumentsDrawing EN Ultra-Fast and Ultra Fast Plus +8

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	521597-2

Color	Natural
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [Max]	3.81 mm
Insulation Diameter [Max]	0.15 in
Insulation Diameter [Min]	0.11 in
Insulation Diameter [Min]	2.79 mm
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	14 AWG

Ultra-Pod 187 Series

Part	Gender	Contact Material	Terminal Type	Mounting Type	Length - Overall	Length - Overall [x]	Insulation	Tab Thickness	Tab Thickness	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Color	Tab Width	Tab Width	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Contact Finish	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]
TE Connectivity Raychem Cable Protection 521284-1	Female	Brass	Standard	Free Hanging (In-Line)	27.56 mm	1.085 "	Fully Insulated	0.032 in	0.81 mm	3.3 mm	2.29 mm	0.13 in	0.09 in	Natural	4.75 mm	0.187 in	16 AWG	20 AWG	Crimp
TE Connectivity Raychem Cable Protection 520982-8	Female	Brass	Standard	Free Hanging (In-Line)	27.56 mm	1.085 "	Fully Insulated	0.032 in	0.81 mm	3.3 mm	2.29 mm	0.13 in	0.09 in	Black	4.75 mm	0.187 in	16 AWG	20 AWG	Crimp
TE Connectivity Raychem Cable Protection 520982-2	Female	Brass	Standard	Free Hanging (In-Line)	27.56 mm	1.085 "	Fully Insulated	0.032 in	0.81 mm	3.3 mm	2.29 mm	0.13 in	0.09 in	Natural	4.75 mm	0.187 in	16 AWG	20 AWG	Crimp	Tin
TE Connectivity Raychem Cable Protection 521599-2	Female	Brass	Angled - 90° Flag	Free Hanging (In-Line) Right Angle			Fully Insulated	0.032 in	0.81 mm	3.81 mm	2.79 mm			Natural	4.75 mm	0.187 in	14 AWG	20 AWG	Crimp	Tin	0.11 in	0.15 in
TE Connectivity Raychem Cable Protection 521995-2	Female	Brass	Standard	Free Hanging (In-Line)	27.56 mm	1.085 "	Mating End Insulated	0.02 "	0.51 mm					White	4.75 mm	0.187 in	16 AWG	20 AWG	Crimp	Tin			0.105 in	2.67 mm	5.33 mm	0.21 in
TE Connectivity Raychem Cable Protection 521597-2	Female	Brass	Angled - 90° Flag	Free Hanging (In-Line) Right Angle			Fully Insulated	0.02 "	0.51 mm	3.81 mm	2.79 mm			Natural	4.75 mm	0.187 in	14 AWG	18 AWG	Crimp	Tin	0.11 in	0.15 in
TE Connectivity Raychem Cable Protection 521598-2	Female	Brass	Angled - 90° Flag	Free Hanging (In-Line) Right Angle			Fully Insulated	0.032 in	0.81 mm					Natural	4.75 mm	0.187 in	17.5 AWG	22 AWG	Crimp	Tin			0.06 in	1.52 mm	2.79 mm	0.11 "
TE Connectivity Raychem Cable Protection 520973-2	Female	Brass	Standard	Free Hanging (In-Line)	27.56 mm	1.085 "	Fully Insulated	0.02 "	0.51 mm	3.3 mm	2.29 mm	0.13 in	0.09 in	Natural	4.75 mm	0.187 in	16 AWG	20 AWG	Crimp	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.44
		10	$ 0.40
		25	$ 0.40
		50	$ 0.39
		100	$ 0.33
		250	$ 0.30
		500	$ 0.28
		1000	$ 0.25
	Tape & Reel (TR)	2200	$ 0.25
		4400	$ 0.25
		6600	$ 0.22
		11000	$ 0.21
Newark	Each	5000	$ 0.24
