42663-2

Active

TE Connectivity Raychem Cable Protection

FF 312 REC 16-12AWG TPBR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsENG_CD_42663_J_baseFilename.pdf Fastons +3

42663-2

Active

TE Connectivity Raychem Cable Protection

FF 312 REC 16-12AWG TPBR

Deep-Dive with AI

DocumentsENG_CD_42663_J_baseFilename.pdf Fastons +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	42663-2

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Length - Overall	23.24 mm
Length - Overall	0.915 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.38 in
Tab Length	9.65 mm
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	7.92 mm
Tab Width	0.312 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	16 AWG
Wire Gauge [Min]	12 AWG

FASTIN-FASTON 250 Series

...

Part	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Tab Thickness	Tab Thickness	Contact Finish	Mounting Type	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Tab Width	Tab Width	Tab Length	Tab Length	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation	Termination	Length - Overall	Length - Overall	Tab Length	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Note	Color	Number of Positions	Stacking Direction	Style	Material	Terminal Size	Terminal Size	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]
TE Connectivity Raychem Cable Protection 180351-8	12 AWG	10 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	5.1 mm	0.201 in	0.134 in	3.4 mm	6.35 mm	0.25 in	0.303 in	7.7 mm	Standard	19 mm	0.748 "	Brass	Non-Insulated	Crimp
TE Connectivity Raychem Cable Protection 42663-2	16 AWG	12 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					7.92 mm	0.312 in		0.38 in	Standard			Brass	Non-Insulated	Crimp	23.24 mm	0.915 in	9.65 mm
TE Connectivity Raychem Cable Protection 160458-2	18 AWG	14 AWG	Male	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	0.161 " 4.09 mm			0.122 " 3.1 mm	6.35 mm	0.25 in			Standard			Phosphor Bronze	Non-Insulated	Crimp
TE Connectivity Raychem Cable Protection 172130-4			Female Receptacle				Free Hanging (In-Line)									Disconnect Quick Connect									0.25 in	Quick Connects	6.35 mm	Contacts Not Included	Green	2	Perpendicular	Housing	Nylon	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 5-160446-5	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	4.09 mm	0.161 in	0.118 in	3 mm	6.35 mm	0.25 in		0.305 in	Standard	19.2 mm	0.756 in	Brass	Non-Insulated	Crimp			7.75 mm
TE Connectivity Raychem Cable Protection 1-293041-2	28 AWG	17 AWG	Male	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					6.35 mm	0.25 in	0.618 in	15.7 mm	Standard	27 mm	1.063 in	Brass	Non-Insulated	Crimp
TE Connectivity Raychem Cable Protection 172130-7
TE Connectivity Raychem Cable Protection 5-160446-2	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	4.09 mm	0.161 in	0.118 in	3 mm	6.35 mm	0.25 in		0.305 in	Standard	19.2 mm	0.756 in	Phosphor Bronze	Non-Insulated	Crimp			7.75 mm
TE Connectivity Raychem Cable Protection 62891-1	16 AWG	12 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					6.35 mm	0.25 in		0.305 in	Standard		0.75 in	Brass	Non-Insulated	Crimp	19.05 mm		7.75 mm												4.83 mm	3.81 mm	0.15 "	0.19 "
TE Connectivity Raychem Cable Protection 160917-4	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	3.1 mm	0.122 "	0.083 "	2.11 mm	6.35 mm	0.25 in			Standard	19.2 mm	0.756 in	Phosphor Bronze	Non-Insulated	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.36
		10	$ 0.33
		25	$ 0.33
		50	$ 0.32
		100	$ 0.27
		250	$ 0.25
		500	$ 0.23
		1000	$ 0.20
		2500	$ 0.20
	Tape & Reel (TR)	6000	$ 0.16

Description

General part information

FASTIN-FASTON 250 Series

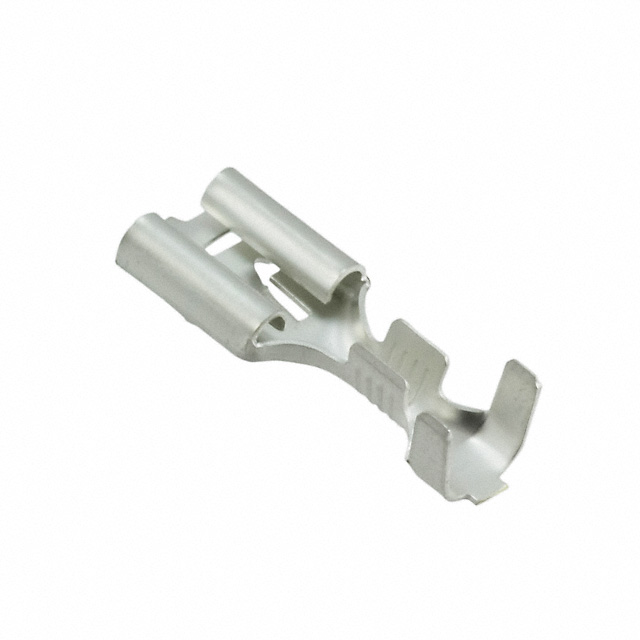

Quick Disconnect Receptacle, 16 – 12 AWG, 1.31 – 3.31 mm² Wire, 7.92 mm [.312 in] Tab Width, Straight, Brass, Tin Plating, FASTIN-FASTON 250
