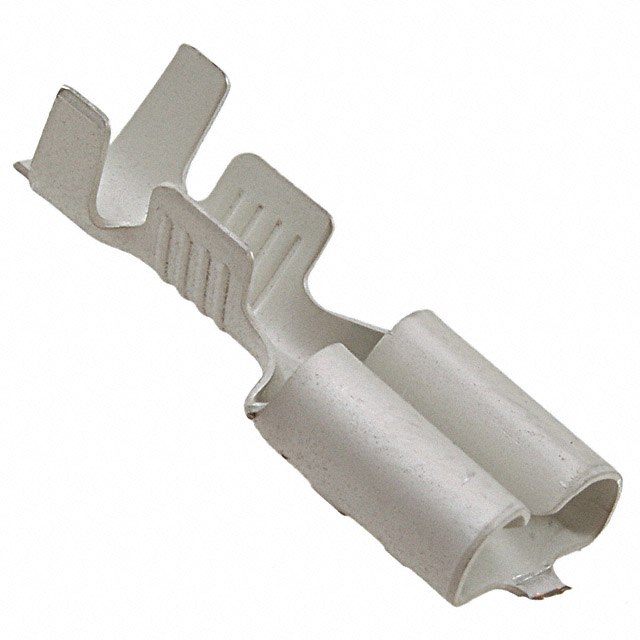

5-160446-2
ActiveTE Connectivity Raychem Cable Protection
FF 250 REC 1.0-2.5MM2 TPPB
Deep-Dive with AI
Search across all available documentation for this part.
5-160446-2
ActiveTE Connectivity Raychem Cable Protection
FF 250 REC 1.0-2.5MM2 TPPB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-160446-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 4.09 mm |
| Insulation Diameter [Max] | 0.161 in |
| Insulation Diameter [Min] | 0.118 in |
| Insulation Diameter [Min] | 3 mm |
| Length - Overall [x] | 0.756 in |
| Length - Overall [x] | 19.2 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 7.75 mm |
| Tab Length | 0.305 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 17 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.18 | |||
| Tape & Reel (TR) | 5000 | $ 0.15 | ||
Description
General part information
FASTIN-FASTON 250 Series
Quick Disconnect Receptacle, 17 – 13 AWG, 1.03 – 2.62 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Phosphor Bronze, Tin Plating, FASTIN-FASTON 250
Documents
Technical documentation and resources
