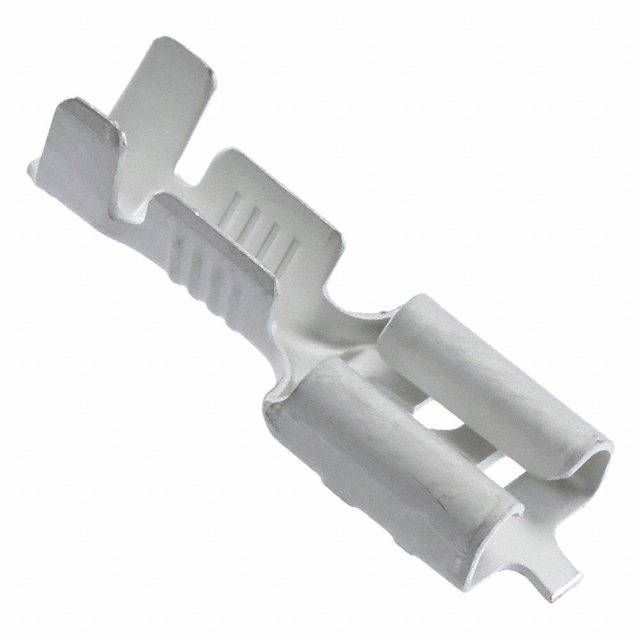

160917-4

Active

TE Connectivity Raychem Cable Protection

FF 250 REC 1-2.5MM2 TPPB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ENG_CD_160917_E3.pdf +4

160917-4

Active

TE Connectivity Raychem Cable Protection

FF 250 REC 1-2.5MM2 TPPB

Deep-Dive with AI

DocumentsDatasheet ENG_CD_160917_E3.pdf +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	160917-4

Contact Finish	Tin
Contact Material	Phosphor Bronze
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max]	0.122 "
Insulation Diameter [Max]	3.1 mm
Insulation Diameter [Min]	2.11 mm
Insulation Diameter [Min]	0.083 "
Length - Overall [x]	0.756 in
Length - Overall [x]	19.2 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	17 AWG
Wire Gauge [Min]	14 AWG

FASTIN-FASTON 250 Series

...

Part	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Tab Thickness	Tab Thickness	Contact Finish	Mounting Type	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Tab Width	Tab Width	Tab Length	Tab Length	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation	Termination	Length - Overall	Length - Overall	Tab Length	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Note	Color	Number of Positions	Stacking Direction	Style	Material	Terminal Size	Terminal Size	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]
TE Connectivity Raychem Cable Protection 180351-8	12 AWG	10 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	5.1 mm	0.201 in	0.134 in	3.4 mm	6.35 mm	0.25 in	0.303 in	7.7 mm	Standard	19 mm	0.748 "	Brass	Non-Insulated	Crimp
TE Connectivity Raychem Cable Protection 42663-2	16 AWG	12 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					7.92 mm	0.312 in		0.38 in	Standard			Brass	Non-Insulated	Crimp	23.24 mm	0.915 in	9.65 mm
TE Connectivity Raychem Cable Protection 160458-2	18 AWG	14 AWG	Male	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	0.161 " 4.09 mm			0.122 " 3.1 mm	6.35 mm	0.25 in			Standard			Phosphor Bronze	Non-Insulated	Crimp
TE Connectivity Raychem Cable Protection 172130-4			Female Receptacle				Free Hanging (In-Line)									Disconnect Quick Connect									0.25 in	Quick Connects	6.35 mm	Contacts Not Included	Green	2	Perpendicular	Housing	Nylon	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 5-160446-5	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	4.09 mm	0.161 in	0.118 in	3 mm	6.35 mm	0.25 in		0.305 in	Standard	19.2 mm	0.756 in	Brass	Non-Insulated	Crimp			7.75 mm
TE Connectivity Raychem Cable Protection 1-293041-2	28 AWG	17 AWG	Male	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					6.35 mm	0.25 in	0.618 in	15.7 mm	Standard	27 mm	1.063 in	Brass	Non-Insulated	Crimp
TE Connectivity Raychem Cable Protection 172130-7
TE Connectivity Raychem Cable Protection 5-160446-2	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	4.09 mm	0.161 in	0.118 in	3 mm	6.35 mm	0.25 in		0.305 in	Standard	19.2 mm	0.756 in	Phosphor Bronze	Non-Insulated	Crimp			7.75 mm
TE Connectivity Raychem Cable Protection 62891-1	16 AWG	12 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					6.35 mm	0.25 in		0.305 in	Standard		0.75 in	Brass	Non-Insulated	Crimp	19.05 mm		7.75 mm												4.83 mm	3.81 mm	0.15 "	0.19 "
TE Connectivity Raychem Cable Protection 160917-4	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	3.1 mm	0.122 "	0.083 "	2.11 mm	6.35 mm	0.25 in			Standard	19.2 mm	0.756 in	Phosphor Bronze	Non-Insulated	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.33
		10	$ 0.28
		25	$ 0.28
		50	$ 0.28
		100	$ 0.26
		250	$ 0.21
		500	$ 0.20
		1000	$ 0.18
		2500	$ 0.18
	Tape & Reel (TR)	5000	$ 0.16
		10000	$ 0.14
		25000	$ 0.14
Newark	Each (Supplied on Cut Tape)	1	$ 0.24

Description

General part information

FASTIN-FASTON 250 Series

Quick Disconnect Receptacle, 17 – 13 AWG, 1.03 – 2.62 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Phosphor Bronze, Tin Plating, FASTIN-FASTON 250

Documents

Technical documentation and resources

Datasheet

160917-4

Deep-Dive with AI

160917-4

Deep-Dive with AI

Technical Specifications

FASTIN-FASTON 250 Series

Pricing

Description

FASTIN-FASTON 250 Series

Documents

Datasheet

ENG_CD_160917_E3.pdf

Allgemeine Crimpspezifikation / GENERAL CRIMP SPEC.

.110,.187 & 250 Series FASTON Terminals

Datasheet

Drawing EN

FASTIN-FASTON 250 Series
