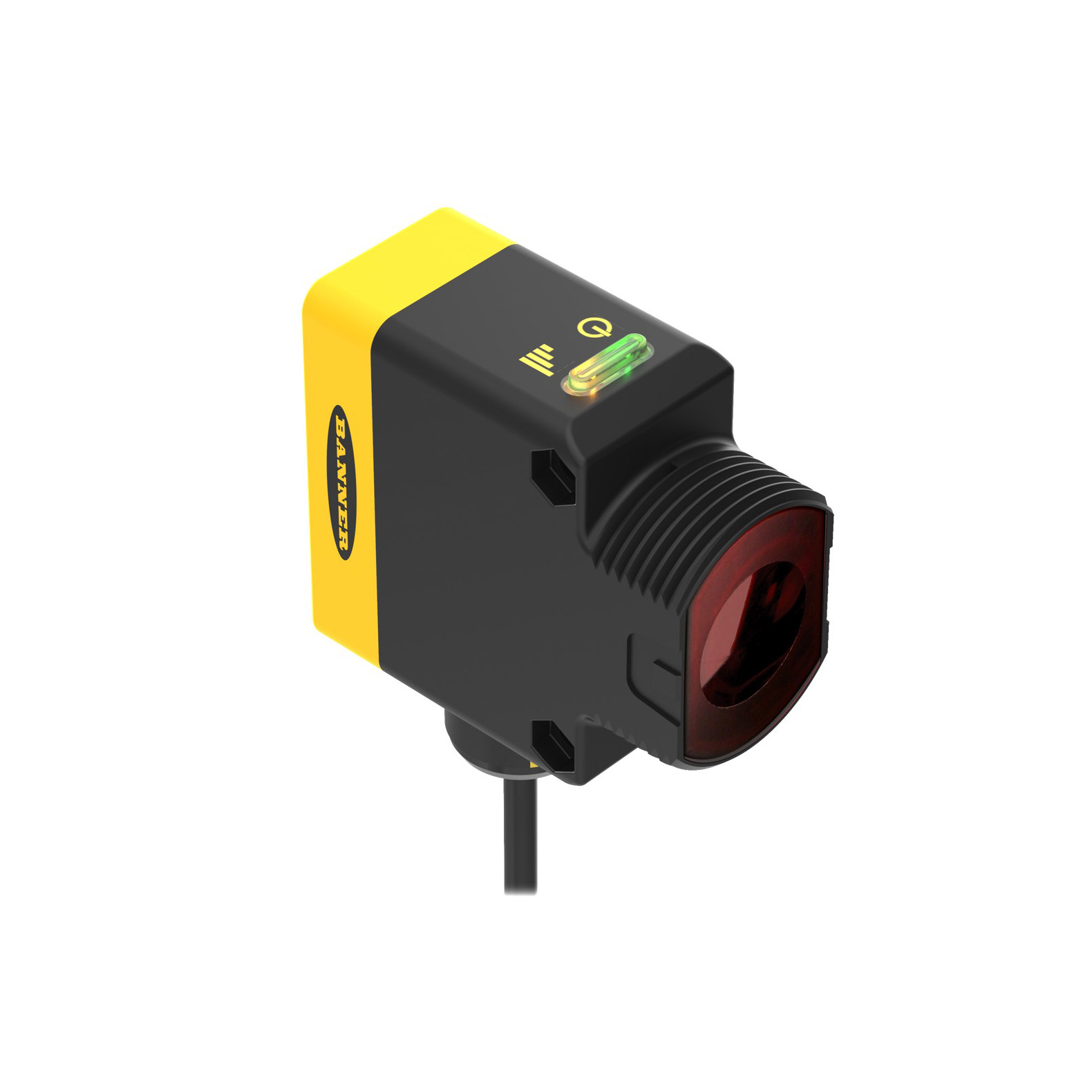

QS30EXH2O

Active

BANNER ENGINEERING

WORLD-BEAM QS30 SERIES: H2O HP EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORLD-BEAM QS30 SERIES: H2O HP EMITTER

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Sensing Method	Response Time	Ingress Protection	Output Configuration	Sensing Distance	Sensing Distance	Connection Method	Adjustment Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Cable Length	Cable Length	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]
BANNER ENGINEERING QS30EDVQ	LED	Diffuse	1.8 ms	NEMA 6P IEC IP67	NPN/PNP - Dark-ON/Light-ON	39.37 in	1 m	Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C
BANNER ENGINEERING QS30EQ	Infrared	Through-Beam		IP67 NEMA 6P		196.85 ft	60 m	Connector		30 VDC	10 VDC			-20 C	70 °C	875 nm
BANNER ENGINEERING QS30EXQP-74009	LED	Through-Beam	100 ms	IP67 NEMA 6P		698.82 ft	213 m	Connector		30 VDC	10 VDC			-20 C	60 °C
BANNER ENGINEERING QS30EXQ	LED	Through-Beam	30 ms	IP69K NEMA 6P		698.82 ft	213 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30EX	LED	Through-Beam	30 ms	IP67 NEMA 6P		698.82 ft	213 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30EXH2O	LED	Through-Beam	1 ms	NEMA 6P IEC IP67		13.12 ft	4 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30ELVCQ5	Red (660nm)	NonPolarized Retroreflective	500 µs	NEMA 6P IEC IP67	Dark-ON/Light-ON NPN/PNP Selectable	78.74 "	2 m	Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C
BANNER ENGINEERING QS30ELVCQ	LED	NonPolarized Retroreflective	500 µs	IP67 NEMA 6P IEC IP67	NPN/PNP			Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C						100 mm	78.74 "	2000 mm	3.937 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 194.00
Newark	Each	1	$ 271.60

General part information

Through-Beam Optical Sensor 13.12' (4m)
