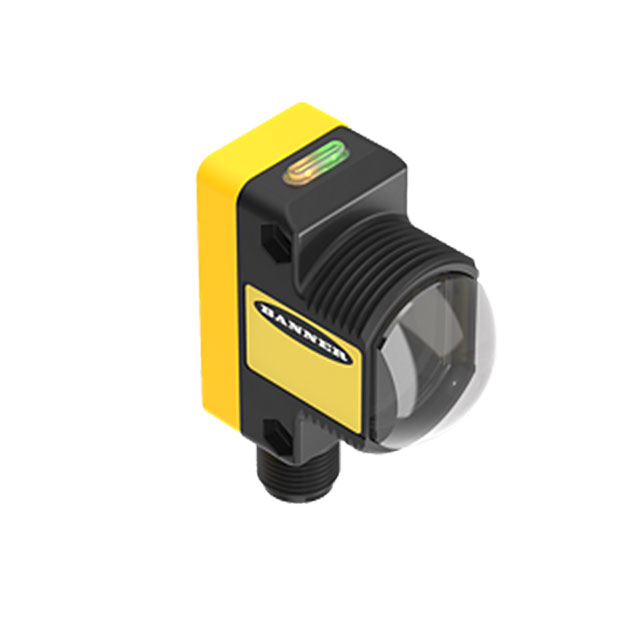

QS30EXQ

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM®, QS30 SERIES, EMITTER, OPPOSED, 213 M, 10 VDC TO 30 VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

QS30EXQ

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM®, QS30 SERIES, EMITTER, OPPOSED, 213 M, 10 VDC TO 30 VDC

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS30EXQ

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IP69K
Light Source	LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Response Time	30 ms
Sensing Distance	213 m
Sensing Distance	698.82 ft
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

QS30E Series

Part	Light Source	Sensing Method	Response Time	Ingress Protection	Output Configuration	Sensing Distance	Sensing Distance	Connection Method	Adjustment Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Cable Length	Cable Length	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]
BANNER ENGINEERING QS30EDVQ	LED	Diffuse	1.8 ms	NEMA 6P IEC IP67	NPN/PNP - Dark-ON/Light-ON	39.37 in	1 m	Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C
BANNER ENGINEERING QS30EQ	Infrared	Through-Beam		IP67 NEMA 6P		196.85 ft	60 m	Connector		30 VDC	10 VDC			-20 C	70 °C	875 nm
BANNER ENGINEERING QS30EXQP-74009	LED	Through-Beam	100 ms	IP67 NEMA 6P		698.82 ft	213 m	Connector		30 VDC	10 VDC			-20 C	60 °C
BANNER ENGINEERING QS30EXQ	LED	Through-Beam	30 ms	IP69K NEMA 6P		698.82 ft	213 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30EX	LED	Through-Beam	30 ms	IP67 NEMA 6P		698.82 ft	213 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30EXH2O	LED	Through-Beam	1 ms	NEMA 6P IEC IP67		13.12 ft	4 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30ELVCQ5	Red (660nm)	NonPolarized Retroreflective	500 µs	NEMA 6P IEC IP67	Dark-ON/Light-ON NPN/PNP Selectable	78.74 "	2 m	Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C
BANNER ENGINEERING QS30ELVCQ	LED	NonPolarized Retroreflective	500 µs	IP67 NEMA 6P IEC IP67	NPN/PNP			Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C						100 mm	78.74 "	2000 mm	3.937 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 173.00
Newark	Each	1	$ 171.25

Description

General part information

QS30E Series

The QS30EXQ is a high-power opposed-mode Photoelectric Sensor provides excellent noise immunity. The WORLD-BEAM® QS30 series 71561 sensor is extremely rugged, powerful and leak-proof. They are designed to withstand the most demanding industrial applications, including high-pressure wash down areas. They are powerful enough to burn through heavy fog, dust and most types of industrial and process contamination. The sensor's electronics are epoxy-encapsulated for maximum resistance to mechanical shock and vibration. The popular WORLDBEAM-style housing provides multiple mounting configurations in a minimum of space.

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

Technical Data Sheet EN

Datasheet
