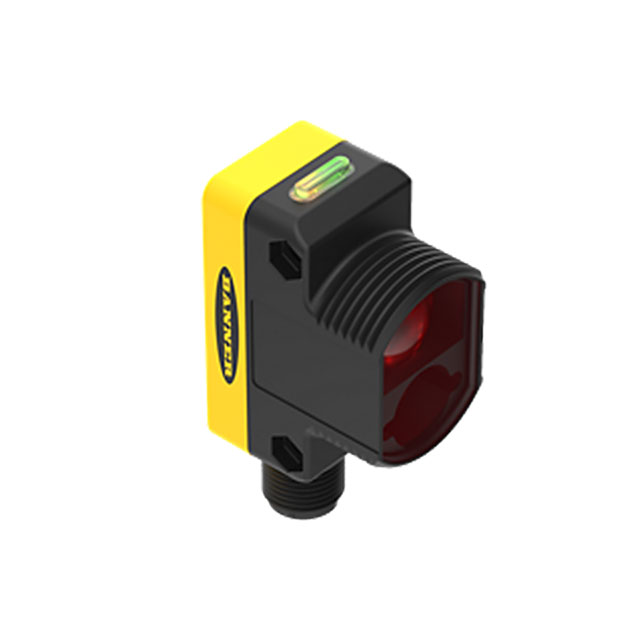

QS30EDVQ

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, QS30 SERIES, WORLD-BEAM, DIFFUSE, 1400MM, NPN / PNP, 10-30V, QUICK DISCONNECT

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, QS30 SERIES, WORLD-BEAM, DIFFUSE, 1400MM, NPN / PNP, 10-30V, QUICK DISCONNECT

Technical Specifications

Parameters and characteristics for this part

Specification	QS30EDVQ

Adjustment Type	Adjustable
Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP - Dark-ON/Light-ON
Response Time	1.8 ms
Sensing Distance	39.37 in
Sensing Distance	1 m
Sensing Method	Diffuse
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Light Source	Sensing Method	Response Time	Ingress Protection	Output Configuration	Sensing Distance	Sensing Distance	Connection Method	Adjustment Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Cable Length	Cable Length	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]
BANNER ENGINEERING QS30EDVQ	LED	Diffuse	1.8 ms	NEMA 6P IEC IP67	NPN/PNP - Dark-ON/Light-ON	39.37 in	1 m	Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C
BANNER ENGINEERING QS30EQ	Infrared	Through-Beam		IP67 NEMA 6P		196.85 ft	60 m	Connector		30 VDC	10 VDC			-20 C	70 °C	875 nm
BANNER ENGINEERING QS30EXQP-74009	LED	Through-Beam	100 ms	IP67 NEMA 6P		698.82 ft	213 m	Connector		30 VDC	10 VDC			-20 C	60 °C
BANNER ENGINEERING QS30EXQ	LED	Through-Beam	30 ms	IP69K NEMA 6P		698.82 ft	213 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30EX	LED	Through-Beam	30 ms	IP67 NEMA 6P		698.82 ft	213 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30EXH2O	LED	Through-Beam	1 ms	NEMA 6P IEC IP67		13.12 ft	4 m	Cable		30 VDC	10 VDC			-20 C	60 °C		78.74 in	2 m
BANNER ENGINEERING QS30ELVCQ5	Red (660nm)	NonPolarized Retroreflective	500 µs	NEMA 6P IEC IP67	Dark-ON/Light-ON NPN/PNP Selectable	78.74 "	2 m	Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C
BANNER ENGINEERING QS30ELVCQ	LED	NonPolarized Retroreflective	500 µs	IP67 NEMA 6P IEC IP67	NPN/PNP			Connector	Adjustable	30 VDC	10 VDC	55 °C	-10 °C						100 mm	78.74 "	2000 mm	3.937 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 196.00
Newark	Each	1	$ 193.63

General part information

Diffuse Optical Sensor 39.370" (1m) NPN/PNP - Dark-ON/Light-ON
