PRO-IS-578

Active

Abracon LLC

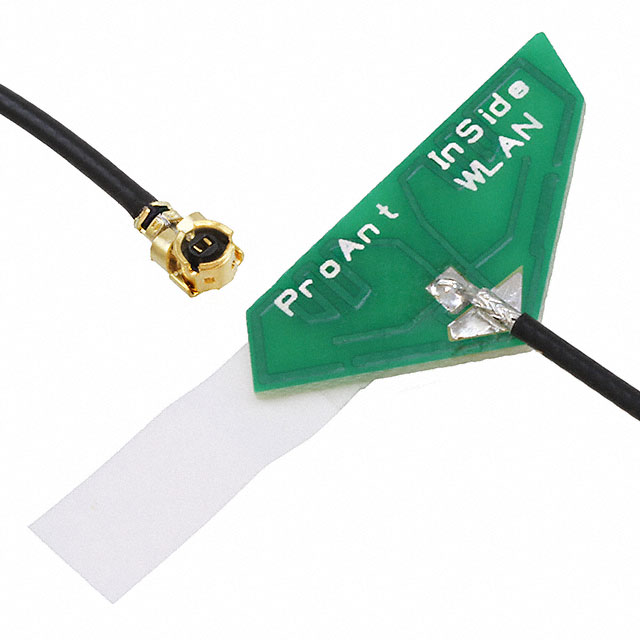

INSIDE WLAN TRIANGLE 100MM MHF4

Deep-Dive with AI

Search across all available documentation for this part.

PRO-IS-578

Active

Abracon LLC

INSIDE WLAN TRIANGLE 100MM MHF4

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.38
		10	$ 6.50
		25	$ 5.75
		100	$ 4.92
		250	$ 4.51
		500	$ 4.27
		1000	$ 4.06
		2500	$ 3.96

Description

General part information

PRO-IS Series

2.4425GHz, 5.5125GHz Bluetooth, ISM, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz 3dBi IPEX MHF4 Adhesive

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PRO-IS-578	PRO-IS Series

Antenna Type	PCB Trace	PCB Trace
Applications	ISM, Zigbee™, Bluetooth, WLAN	WLAN, GSM, EDGE, UMTS, LTE, GPRS, ISM, Zigbee™, Bluetooth
Features	Cable	Cable
Features	100 mm	100 mm
Frequency (Center/Band)	2.4425 GHz, 5.5125 GHz	1.795 - 914 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group	-	Wide Band
Frequency Group [Max]	3 GHz	3 GHz
Frequency Group [Min]	2 GHz	2 GHz
Frequency Range [Max]	5.875 GHz, 2.485 GHz	1.88 - 960 GHz
Frequency Range [Min]	2.4 GHz, 5.15 GHz	1.71 - 868 GHz
Gain	3 dBi	3 - 5.5 dBi
Height (Max)	-	0.005 - 0.031 in
Height (Max)	-	0.8 mm
Height (Max)	-	0.13 mm
Height (Max) [Max] [z]	1 mm	1 mm
Height (Max) [Max] [z]	0.039 in	0.039 in
Mounting Type	Adhesive	Adhesive
Number of Bands	2	1 - 2
Power - Max	-	3 W
Return Loss	-	-4 dB
Return Loss	-	5 dB
Return Loss	-	-6 dB
RF Family/Standard	-	WiFi, Cellular, General ISM
Termination	IPEX MHF4	IPEX MHF1, U.FL (UMCC), IPEX MHF4
VSWR	3	2 - 4

PRO-IS Series

RF ANT 2.4/5.5GHZ PCB TRACE CAB

Part	Gain	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Applications	Features	Features	Antenna Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency (Center/Band)	Termination	RF Family/Standard	Power - Max [Max]	Mounting Type	Height (Max) [Max]	Height (Max)	Return Loss [Min]	Return Loss [Max]	Return Loss	Height (Max) [Max]	VSWR	Frequency Group
Abracon LLC PRO-IS-432	3 dBi	1 mm	0.039 in	2	2.485 GHz, 5.875 GHz	2.4 GHz, 5.18 GHz	WLAN	Cable	100 mm	PCB Trace	4 GHz	2 GHz	3 GHz	2.4 GHz, 5.5 GHz	IPEX MHF1, U.FL (UMCC)	WiFi	3 W	Adhesive
Abracon LLC PRO-IS-573	4 dBi			2	1.88 GHz, 960 MHz	1.71 GHz, 791 MHz	GSM			PCB Trace				1.795 GHz, 875.5 MHz	IPEX MHF1, U.FL (UMCC)	Cellular		Adhesive	0.031 in	0.8 mm	-4 dB	5 dB
Abracon LLC PRO-IS-590	5.5 dBi			2	2.17 GHz, 960 MHz	1.71 GHz, 791 MHz	EDGE, GPRS, GSM, LTE, UMTS	Cable	100 mm	PCB Trace				1.94 GHz, 875.5 MHz	IPEX MHF4	Cellular		Adhesive	0.005 in				-6 dB	0.13 mm
Abracon LLC PRO-IS-587	3 dBi	1 mm	0.039 in	1	2.485 GHz	2.4 GHz	ISM	Cable	100 mm	PCB Trace				2.4425 GHz	IPEX MHF4	General ISM		Adhesive							2
Abracon LLC PRO-IS-583	3 dBi			2	1.99 GHz, 960 MHz	1.71 GHz, 868 MHz	GSM	Cable	100 mm	PCB Trace				1.85 GHz, 914 MHz	IPEX MHF4	Cellular		Adhesive	0.031 in	0.8 mm					4
Abracon LLC PRO-IS-577	5.5 dBi			2	2.17 GHz, 960 MHz	1.71 GHz, 791 MHz	GSM	Cable	100 mm	PCB Trace				1.94 GHz, 875.5 MHz	IPEX MHF1, U.FL (UMCC)	Cellular		Adhesive	0.005 in				-6 dB	0.13 mm		Wide Band
Abracon LLC PRO-IS-578	3 dBi	1 mm	0.039 in	2	2.485 GHz, 5.875 GHz	2.4 GHz, 5.15 GHz	Bluetooth, ISM, WLAN, Zigbee™	Cable	100 mm	PCB Trace	4 GHz	2 GHz	3 GHz	2.4425 GHz, 5.5125 GHz	IPEX MHF4			Adhesive							3
