PRO-IS-583

Active

Abracon LLC

INSIDE GSM/DCS MHF4 100MM ADH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRO-IS-583

Active

Abracon LLC

INSIDE GSM/DCS MHF4 100MM ADH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PRO-IS Series

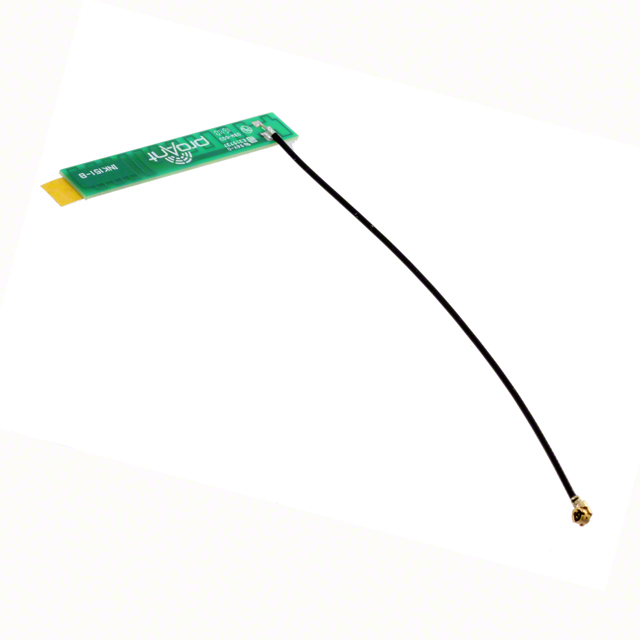

RF ANTENNA GSM PCB Trace IPEX MHF4 Adhesive

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PRO-IS-583	PRO-IS Series

Antenna Type	PCB Trace	PCB Trace
Applications	GSM	WLAN, GSM, EDGE, UMTS, LTE, GPRS, ISM, Zigbee™, Bluetooth
Features	Cable	Cable
Features	100 mm	100 mm
Frequency (Center/Band)	1.85 GHz, 914 MHz	1.795 - 914 GHz
Frequency Group	-	4 GHz
Frequency Group	-	2 GHz
Frequency Group	-	3 GHz
Frequency Group	-	Wide Band
Frequency Range [Max]	1.99 GHz, 960 MHz	1.88 - 960 GHz
Frequency Range [Min]	1.71 GHz, 868 MHz	1.71 - 868 GHz
Gain	3 dBi	3 - 5.5 dBi
Height (Max)	0.8 mm	0.8 mm
Height (Max)	-	1 mm
Height (Max)	-	0.039 in
Height (Max)	-	0.13 mm
Height (Max) [Max]	0.031 in	0.005 - 0.031 in
Mounting Type	Adhesive	Adhesive
Number of Bands	2	1 - 2
Power - Max	-	3 W
Return Loss	-	-4 dB
Return Loss	-	5 dB
Return Loss	-	-6 dB
RF Family/Standard	Cellular	WiFi, Cellular, General ISM
Termination	IPEX MHF4	IPEX MHF1, U.FL (UMCC), IPEX MHF4
VSWR	4	2 - 4

PRO-IS Series

RF ANT 2.4/5.5GHZ PCB TRACE CAB

Part	Gain	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Applications	Features	Features	Antenna Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency (Center/Band)	Termination	RF Family/Standard	Power - Max [Max]	Mounting Type	Height (Max) [Max]	Height (Max)	Return Loss [Min]	Return Loss [Max]	Return Loss	Height (Max) [Max]	VSWR	Frequency Group
Abracon LLC PRO-IS-432	3 dBi	1 mm	0.039 in	2	2.485 GHz, 5.875 GHz	2.4 GHz, 5.18 GHz	WLAN	Cable	100 mm	PCB Trace	4 GHz	2 GHz	3 GHz	2.4 GHz, 5.5 GHz	IPEX MHF1, U.FL (UMCC)	WiFi	3 W	Adhesive
Abracon LLC PRO-IS-573	4 dBi			2	1.88 GHz, 960 MHz	1.71 GHz, 791 MHz	GSM			PCB Trace				1.795 GHz, 875.5 MHz	IPEX MHF1, U.FL (UMCC)	Cellular		Adhesive	0.031 in	0.8 mm	-4 dB	5 dB
Abracon LLC PRO-IS-590	5.5 dBi			2	2.17 GHz, 960 MHz	1.71 GHz, 791 MHz	EDGE, GPRS, GSM, LTE, UMTS	Cable	100 mm	PCB Trace				1.94 GHz, 875.5 MHz	IPEX MHF4	Cellular		Adhesive	0.005 in				-6 dB	0.13 mm
Abracon LLC PRO-IS-587	3 dBi	1 mm	0.039 in	1	2.485 GHz	2.4 GHz	ISM	Cable	100 mm	PCB Trace				2.4425 GHz	IPEX MHF4	General ISM		Adhesive							2
Abracon LLC PRO-IS-583	3 dBi			2	1.99 GHz, 960 MHz	1.71 GHz, 868 MHz	GSM	Cable	100 mm	PCB Trace				1.85 GHz, 914 MHz	IPEX MHF4	Cellular		Adhesive	0.031 in	0.8 mm					4
Abracon LLC PRO-IS-577	5.5 dBi			2	2.17 GHz, 960 MHz	1.71 GHz, 791 MHz	GSM	Cable	100 mm	PCB Trace				1.94 GHz, 875.5 MHz	IPEX MHF1, U.FL (UMCC)	Cellular		Adhesive	0.005 in				-6 dB	0.13 mm		Wide Band
Abracon LLC PRO-IS-578	3 dBi	1 mm	0.039 in	2	2.485 GHz, 5.875 GHz	2.4 GHz, 5.15 GHz	Bluetooth, ISM, WLAN, Zigbee™	Cable	100 mm	PCB Trace	4 GHz	2 GHz	3 GHz	2.4425 GHz, 5.5125 GHz	IPEX MHF4			Adhesive							3
