PRO-IS-432

Active

Abracon LLC

RF ANT 2.4/5.5GHZ PCB TRACE CAB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.95
		10	$ 3.30
		25	$ 2.87
		100	$ 2.39
		250	$ 2.15
		500	$ 2.01
		1000	$ 1.89
		2500	$ 1.77
		5000	$ 1.70

Description

General part information

PRO-IS Series

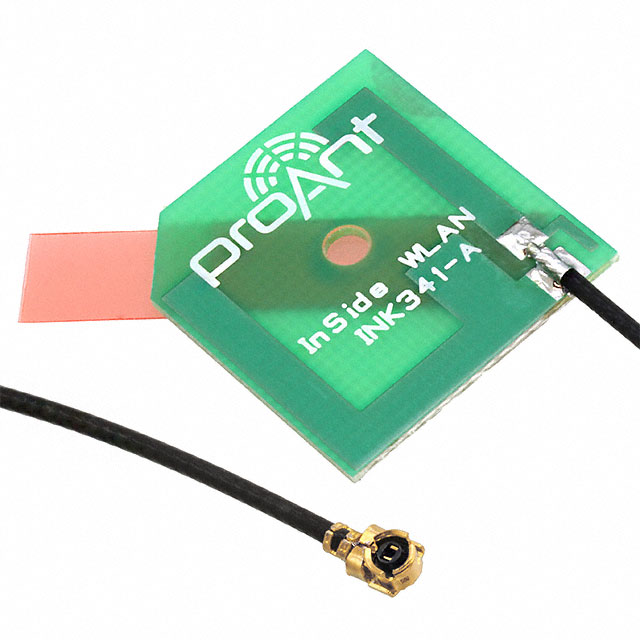

RF ANTENNA WLAN PCB Trace U.FL (UMCC), IPEX MHF1 Adhesive

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PRO-IS-432	PRO-IS Series

Antenna Type	PCB Trace	PCB Trace
Applications	WLAN	WLAN, GSM, EDGE, UMTS, LTE, GPRS, ISM, Zigbee™, Bluetooth
Features	Cable	Cable
Features	100 mm	100 mm
Frequency (Center/Band)	5.5 GHz, 2.4 GHz	1.795 - 914 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group	-	Wide Band
Frequency Group [Max]	3 GHz	3 GHz
Frequency Group [Min]	2 GHz	2 GHz
Frequency Range [Max]	2.485 GHz, 5.875 GHz	1.88 - 960 GHz
Frequency Range [Min]	5.18 GHz, 2.4 GHz	1.71 - 868 GHz
Gain	3 dBi	3 - 5.5 dBi
Height (Max)	-	0.005 - 0.031 in
Height (Max)	-	0.8 mm
Height (Max)	-	0.13 mm
Height (Max) [Max] [z]	1 mm	1 mm
Height (Max) [Max] [z]	0.039 in	0.039 in
Mounting Type	Adhesive	Adhesive
Number of Bands	2	1 - 2
Power - Max [Max]	3 W	3 W
Return Loss	-	-4 dB
Return Loss	-	5 dB
Return Loss	-	-6 dB
RF Family/Standard	WiFi	WiFi, Cellular, General ISM
Termination	IPEX MHF1, U.FL (UMCC)	IPEX MHF1, U.FL (UMCC), IPEX MHF4
VSWR	-	2 - 4

PRO-IS Series

RF ANT 2.4/5.5GHZ PCB TRACE CAB

Part	Gain	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Applications	Features	Features	Antenna Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency (Center/Band)	Termination	RF Family/Standard	Power - Max [Max]	Mounting Type	Height (Max) [Max]	Height (Max)	Return Loss [Min]	Return Loss [Max]	Return Loss	Height (Max) [Max]	VSWR	Frequency Group
Abracon LLC PRO-IS-432	3 dBi	1 mm	0.039 in	2	2.485 GHz, 5.875 GHz	2.4 GHz, 5.18 GHz	WLAN	Cable	100 mm	PCB Trace	4 GHz	2 GHz	3 GHz	2.4 GHz, 5.5 GHz	IPEX MHF1, U.FL (UMCC)	WiFi	3 W	Adhesive
