112120

Amphenol RF

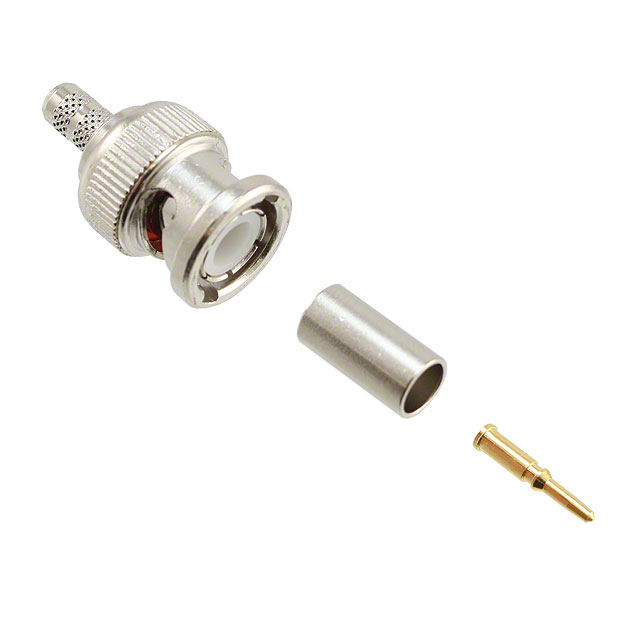

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58C, BRASS

Deep-Dive with AI

Search across all available documentation for this part.

112120

Amphenol RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58C, BRASS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112120

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1121 Series

Part	Voltage Rating	Housing Color	Mating Cycles	Mounting Type	Dielectric Material	Cable Group	Frequency - Max [Max]	Connector Style	Connector Type	Body Material	Center Contact Material	Contact Termination	Shield Termination	Fastening Type	Insertion Loss	Number of Ports	Body Finish	Includes	Impedance	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol RF 112144	500 V	Silver	500	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	BNC	Female Socket Jack	Brass	Phosphor Bronze	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112123	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold
Amphenol RF 112127	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	82259 88241 89259 9259 Belden 1560A RG-59 Plenum	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold	85 °C	-55 °C
Amphenol RF 112119	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold
Amphenol RF 112118	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112120	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112160	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	BNC	Female Socket Jack	Brass	Phosphor Bronze	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule 1 Sleeve	50 Ohms	Gold
Amphenol RF 112199	500 V	Silver	500	Free Hanging (In-Line) Right Angle	Polyoxymethylene (POM) Acetal	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	4 GHz	BNC	Male Pin Plug	Brass	Brass	Solder	Crimp	Bayonet Lock	0.2 dB	1	Nickel		75 Ohms	Gold	85 °C	-40 °C
Amphenol RF 112198	500 V	Silver	500	Free Hanging (In-Line) Right Angle	Polyoxymethylene (POM) Acetal	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	BNC	Male Pin Plug	Brass	Brass	Solder	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule 1 Sleeve	50 Ohms	Gold
Amphenol RF 112139	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold	85 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.40
		10	$ 3.99
		25	$ 3.78
		50	$ 3.70
		100	$ 3.52
		300	$ 3.08
		500	$ 2.99
		1000	$ 2.55
		2500	$ 2.38
Newark	Each	1	$ 3.47
		10	$ 2.76
		25	$ 2.70
		50	$ 2.65
		100	$ 2.59
		250	$ 2.39
		500	$ 2.14
		1000	$ 2.05

Description

General part information

1121 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
