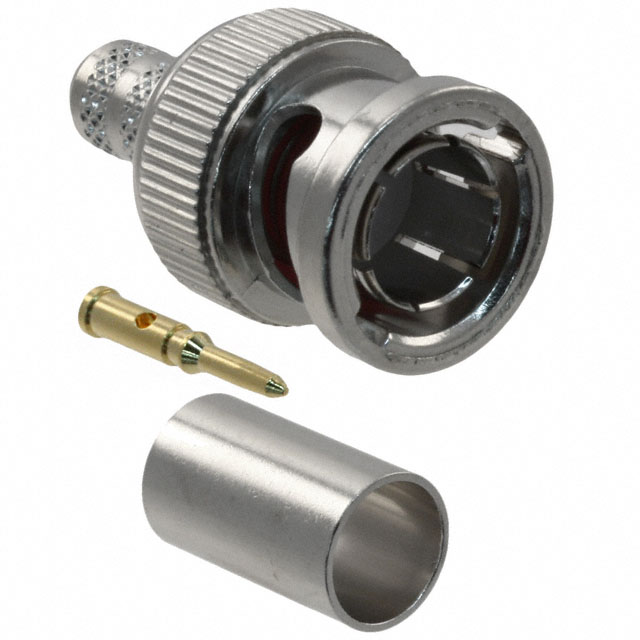

112123

Active

Amphenol RF

CONN BNC 0HZ TO 4GHZ 75OHM CRIMP ST CABLE MOUNT PL GOLD

Deep-Dive with AI

Search across all available documentation for this part.

112123

Active

Amphenol RF

CONN BNC 0HZ TO 4GHZ 75OHM CRIMP ST CABLE MOUNT PL GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112123

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1121 Series

Part	Voltage Rating	Housing Color	Mating Cycles	Mounting Type	Dielectric Material	Cable Group	Frequency - Max [Max]	Connector Style	Connector Type	Body Material	Center Contact Material	Contact Termination	Shield Termination	Fastening Type	Insertion Loss	Number of Ports	Body Finish	Includes	Impedance	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol RF 112144	500 V	Silver	500	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	BNC	Female Socket Jack	Brass	Phosphor Bronze	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112123	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold
Amphenol RF 112127	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	82259 88241 89259 9259 Belden 1560A RG-59 Plenum	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold	85 °C	-55 °C
Amphenol RF 112119	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold
Amphenol RF 112118	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112120	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112160	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	BNC	Female Socket Jack	Brass	Phosphor Bronze	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule 1 Sleeve	50 Ohms	Gold
Amphenol RF 112199	500 V	Silver	500	Free Hanging (In-Line) Right Angle	Polyoxymethylene (POM) Acetal	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	4 GHz	BNC	Male Pin Plug	Brass	Brass	Solder	Crimp	Bayonet Lock	0.2 dB	1	Nickel		75 Ohms	Gold	85 °C	-40 °C
Amphenol RF 112198	500 V	Silver	500	Free Hanging (In-Line) Right Angle	Polyoxymethylene (POM) Acetal	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	BNC	Male Pin Plug	Brass	Brass	Solder	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule 1 Sleeve	50 Ohms	Gold
Amphenol RF 112139	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold	85 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.69
		10	$ 2.39
		25	$ 2.36
		50	$ 2.31
		100	$ 1.97
Digikey	Bag	1	$ 3.54
		10	$ 2.70
		25	$ 2.44
		50	$ 2.25
		100	$ 2.09
		300	$ 1.86
		500	$ 1.76
		1000	$ 1.64
		2500	$ 1.50

Description

General part information

1121 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
