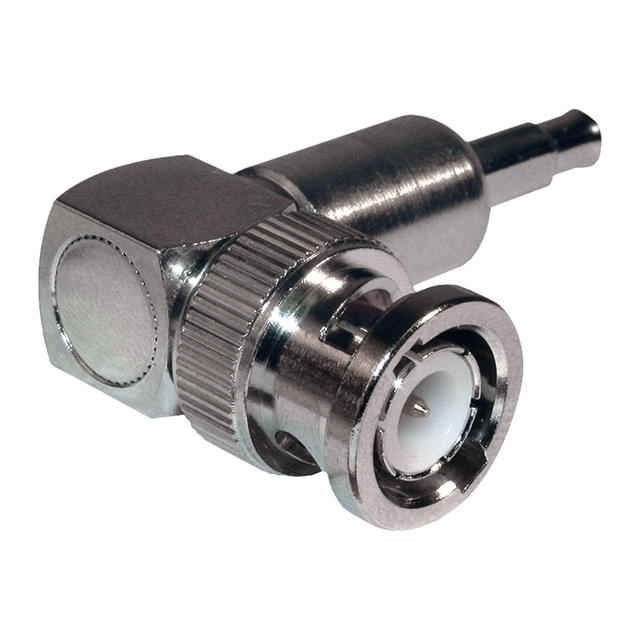

BNC RIGHT ANGLE CRIMP PLUG RG-174 RG-188 RG-316 TIMES LMR-100A 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

112198

Active

Amphenol RF

BNC RIGHT ANGLE CRIMP PLUG RG-174 RG-188 RG-316 TIMES LMR-100A 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112198

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Sleeve, 1 Ferrule, 1 Contact
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1121 Series

Part	Voltage Rating	Housing Color	Mating Cycles	Mounting Type	Dielectric Material	Cable Group	Frequency - Max [Max]	Connector Style	Connector Type	Body Material	Center Contact Material	Contact Termination	Shield Termination	Fastening Type	Insertion Loss	Number of Ports	Body Finish	Includes	Impedance	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol RF 112144	500 V	Silver	500	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	BNC	Female Socket Jack	Brass	Phosphor Bronze	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112123	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold
Amphenol RF 112127	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	82259 88241 89259 9259 Belden 1560A RG-59 Plenum	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold	85 °C	-55 °C
Amphenol RF 112119	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold
Amphenol RF 112118	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112120	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold
Amphenol RF 112160	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	BNC	Female Socket Jack	Brass	Phosphor Bronze	Crimp	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule 1 Sleeve	50 Ohms	Gold
Amphenol RF 112199	500 V	Silver	500	Free Hanging (In-Line) Right Angle	Polyoxymethylene (POM) Acetal	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	4 GHz	BNC	Male Pin Plug	Brass	Brass	Solder	Crimp	Bayonet Lock	0.2 dB	1	Nickel		75 Ohms	Gold	85 °C	-40 °C
Amphenol RF 112198	500 V	Silver	500	Free Hanging (In-Line) Right Angle	Polyoxymethylene (POM) Acetal	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	BNC	Male Pin Plug	Brass	Brass	Solder	Crimp	Bayonet Lock	0.2 dB	1	Nickel	1 Connector 1 Contact 1 Ferrule 1 Sleeve	50 Ohms	Gold
Amphenol RF 112139	500 V	Silver	500	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	4 GHz	BNC	Male Pin Plug	Brass	Brass	Crimp	Crimp	Bayonet Lock		1	Nickel	1 Connector 1 Contact 1 Ferrule	75 Ohms	Gold	85 °C	-55 °C
