621-M09-260-BN4

Active

EDAC Inc.

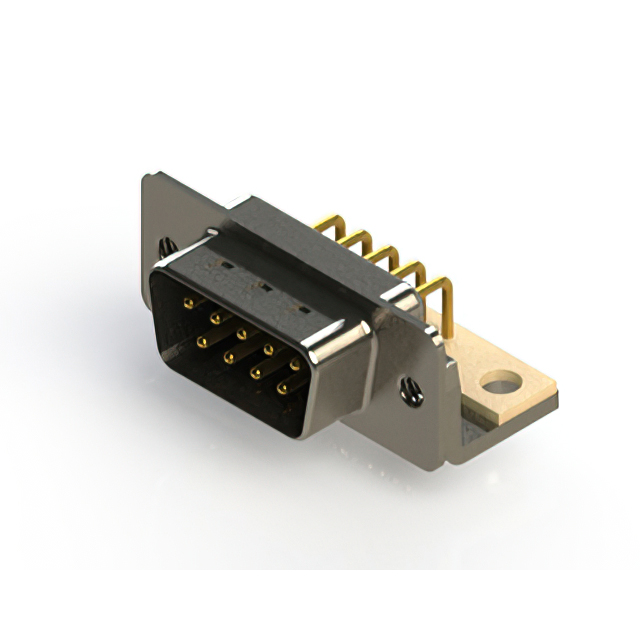

D SUB CONNECTOR, STANDARD, PLUG, 621 SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

621-M09-260-BN4

Active

EDAC Inc.

D SUB CONNECTOR, STANDARD, PLUG, 621 SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	621-M09-260-BN4

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

621-M09 Series

...

Part	Material Flammability Rating	Color	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish	Connector Type	Termination	Backset Spacing	Backset Spacing	Flange Feature	Contact Type	Contact Material	Dielectric Material	Connector Style	Contact Finish Thickness	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 621-M09-260-BT5	UL94 V-0	Black	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	4-40	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub	Flash	5 A
EDAC Inc. 621-M09-360-GN2	UL94 V-0	Green	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Grounding Indents Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	Housing/Shell (4-40)	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub		5 A	15 µin	0.38 µm	Nickel Plated Steel
EDAC Inc. 621-M09-260-GT6	UL94 V-0	Green	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Board Lock Mounting Brackets Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	Housing/Shell (4-40)	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub	Flash	5 A
EDAC Inc. 621-M09-660-LT1	UL94 V-0	Blue	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Grounding Indents Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	Housing/Shell (Unthreaded)	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub		5 A	30 Áin	0.76 Ám
EDAC Inc. 621-M09-660-LN5	UL94 V-0	Blue	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	4-40	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub		5 A	30 Áin	0.76 Ám	Nickel Plated Steel
EDAC Inc. 621-M09-260-BN5	UL94 V-0	Black	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	4-40	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub	Flash	5 A			Nickel Plated Steel
EDAC Inc. 621-M09-360-GN4	UL94 V-0	Green	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Grounding Indents Mounting Brackets Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	Housing/Shell (4-40)	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub		5 A	15 µin	0.38 µm	Nickel Plated Steel
EDAC Inc. 621-M09-260-BN4	UL94 V-0	Black	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Grounding Indents Mounting Brackets Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	Housing/Shell (4-40)	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub	Flash	5 A			Nickel Plated Steel
EDAC Inc. 621-M09-260-GN3	UL94 V-0	Green	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	Housing/Shell (4-40)	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub	Flash	5 A			Nickel Plated Steel
EDAC Inc. 621-M09-260-LT5	UL94 V-0	Blue	9	DE E	1	2	Board Edge Right Angle Through Hole	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Male Pins Plug	Solder	0.283 in	7.2 mm	4-40	Signal	Copper Alloy	Polyamide (PA6T) Nylon 6T	D-Sub	Flash	5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 3.72
Newark	Each	100	$ 3.99
		250	$ 3.72
		500	$ 3.54
		1000	$ 3.37
		2500	$ 3.10

Description

General part information

621-M09 Series

9 Position D-Sub Plug, Male Pins Connector
