Description

General part information

621-M09 Series

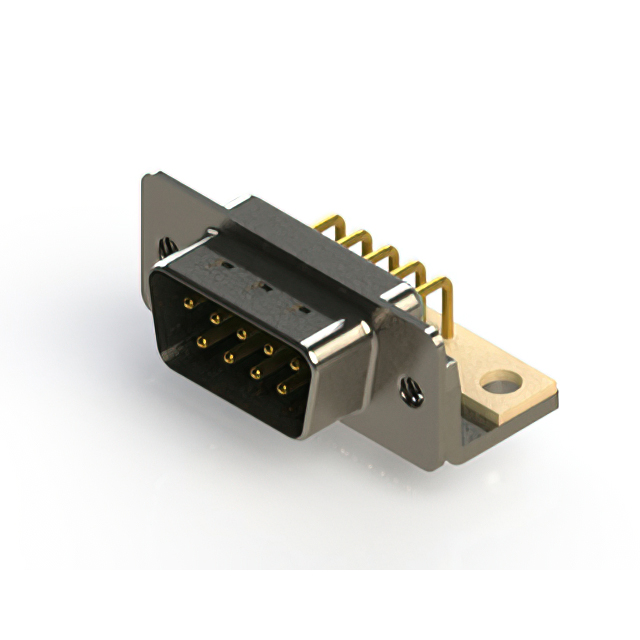

9 Position D-Sub Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	621-M09-360-GN4

Backset Spacing	0.283 in
Color	Green
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded, Grounding Indents, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

621-M09 Series

...

Part	Connector Style	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Backset Spacing	Material Flammability Rating	Contact Finish	Shell Size	Connector Layout	Mounting Type	Finish	Shell Material	Number of Positions	Termination	Current Rating	Contact Type	Features	Number of Rows	Flange Feature	Contact Form	Dielectric Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material
EDAC Inc. 621-M09-260-BT5	D-Sub	0	Flash	Flash	Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Tin Plated	Steel	9	Solder	5 A	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	2	Mating Side (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Black	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-360-GN2	D-Sub	15 µin			Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Nickel Plated	Steel	9	Solder	5 A	Signal	Grounding Indents Shielded	2	Housing Shell (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Green	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-260-GT6	D-Sub	0	Flash	Flash	Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Tin Plated	Steel	9	Solder	5 A	Signal	Board Lock Mounting Brackets Shielded	2	Housing Shell (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Green	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-660-LT1	D-Sub	30 µin			Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Tin Plated	Steel	9	Solder	5 A	Signal	Grounding Indents Shielded	2	Housing Shell (Unthreaded)	Machined	Nylon 6T Polyamide (PA6T)	Blue	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-660-LN5	D-Sub	30 µin			Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Nickel Plated	Steel	9	Solder	5 A	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	2	Mating Side (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Blue	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-260-BN5	D-Sub	0	Flash	Flash	Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Nickel Plated	Steel	9	Solder	5 A	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	2	Mating Side (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Black	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-360-GN4	D-Sub	15 µin			Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Nickel Plated	Steel	9	Solder	5 A	Signal	Grounding Indents Mounting Brackets Shielded	2	Housing Shell (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Green	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-260-BN4	D-Sub	0	Flash	Flash	Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Nickel Plated	Steel	9	Solder	5 A	Signal	Grounding Indents Mounting Brackets Shielded	2	Housing Shell (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Black	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-260-GN3	D-Sub	0	Flash	Flash	Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Nickel Plated	Steel	9	Solder	5 A	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	2	Housing Shell (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Green	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M09-260-LT5	D-Sub	0	Flash	Flash	Male Pins Plug	0.283 in	UL94 V-0	Gold	1	DE E	Board Edge Right Angle Through Hole	Tin Plated	Steel	9	Solder	5 A	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	2	Mating Side (4-40)	Machined	Nylon 6T Polyamide (PA6T)	Blue	125 °C	-55 °C	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

621-M09-360-GN4 | Datasheet
