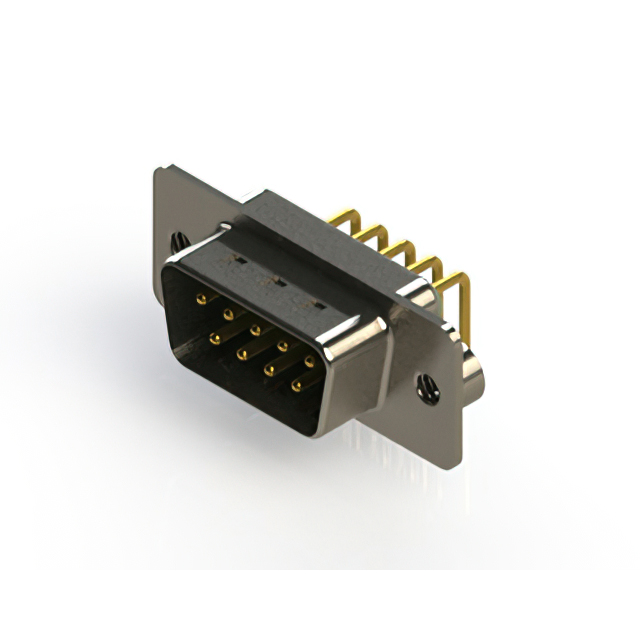

621-M09-360-GN2
ActiveEDAC Inc.
9P RIGHT-ANGLE 2 PUSH-PULL D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
621-M09-360-GN2
ActiveEDAC Inc.
9P RIGHT-ANGLE 2 PUSH-PULL D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 621-M09-360-GN2 |
|---|---|
| Backset Spacing | 0.283 in |
| Backset Spacing | 7.2 mm |
| Color | Green |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
621-M09 Series
...
| Part | Material Flammability Rating | Color | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish | Connector Type | Termination | Backset Spacing | Backset Spacing | Flange Feature | Contact Type | Contact Material | Dielectric Material | Connector Style | Contact Finish Thickness | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | UL94 V-0 | Black | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | 4-40 | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | Flash | 5 A | |||
EDAC Inc. | UL94 V-0 | Green | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Grounding Indents Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | Housing/Shell (4-40) | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | 5 A | 15 µin | 0.38 µm | Nickel Plated Steel | |
EDAC Inc. | UL94 V-0 | Green | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Board Lock Mounting Brackets Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | Housing/Shell (4-40) | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | Flash | 5 A | |||
EDAC Inc. | UL94 V-0 | Blue | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Grounding Indents Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | Housing/Shell (Unthreaded) | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | 5 A | 30 Áin | 0.76 Ám | ||
EDAC Inc. | UL94 V-0 | Blue | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | 4-40 | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | 5 A | 30 Áin | 0.76 Ám | Nickel Plated Steel | |
EDAC Inc. | UL94 V-0 | Black | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | 4-40 | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | Flash | 5 A | Nickel Plated Steel | ||
EDAC Inc. | UL94 V-0 | Green | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Grounding Indents Mounting Brackets Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | Housing/Shell (4-40) | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | 5 A | 15 µin | 0.38 µm | Nickel Plated Steel | |
EDAC Inc. | UL94 V-0 | Black | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Grounding Indents Mounting Brackets Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | Housing/Shell (4-40) | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | Flash | 5 A | Nickel Plated Steel | ||
EDAC Inc. | UL94 V-0 | Green | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | Housing/Shell (4-40) | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | Flash | 5 A | Nickel Plated Steel | ||
EDAC Inc. | UL94 V-0 | Blue | 9 | DE E | 1 | 2 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | Male Pins Plug | Solder | 0.283 in | 7.2 mm | 4-40 | Signal | Copper Alloy | Polyamide (PA6T) Nylon 6T | D-Sub | Flash | 5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
621-M09 Series
9 Position D-Sub Plug, Male Pins Connector
